CON-H2-DD-EARC

4K/60 In-line HDMI Scaler with DSP-Controlled Audio Breakout, Dolby TrueHD™ & DTS-HD™ Downmixing and eARC Output

Introduction

Bringing the latest technology currently only seen on the latest HDMI 2.1 devices the CON-H2-DD-EARC tackles the demands of today’s technology head-on and
provides a multi-pronged approach to the challenges of the modern residential AV system. It combines a powerful set of features that can both down-mix Dolby
TrueHD or DTS-HD audio to stereo and scale incoming 4K UHD content to 1080p. The DSP-controlled stereo audio output allows adjustment of both volume
and EQ via a control system and the unit can be customised further by manually controlling the down-mixing to the S/PDIF and HDMI outputs. ARC/eARC
breakout of audio from a connected smart TV completes the formidable line-up of this trail-blazing device.


Key Features

  • 18Gbps HDMI input supports video content up to 4K/60 4:4:4 and the latest 4K specifications such as HDR10 and Dolby Vision.
  • Powerful audio capabilies allows 7.1 Dolby True HD and DTS-HD signals to be downmixed to stereo RCA.
  • A built-in DSP allows for the audio level and EQ to be adjusted for the stereo RCA output
  • Simultaneous downmixing and audio de-embedding via digital audio outs and stereo RCA.
  • Supports audio sampling rates up to 192 KHz
  • HDMI Output 1 supports 4K to 2K video scaling with HDR conversion
  • Dedicated second audio-only HDMI output for connecting a multi-channel Audio Video Receiver
  • Support for ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel) through HDMI to de-embed or downmix audio from smart display apps such as Netflix, Amazon Prime, etc...
  • Manual EDID dipswitches for easy manipulation of audio and video settings
  • Manufactured under license from Dolby Laboratories
  • RS-232 control port for integration with 3rd-party control systems
  • Supports rack mounting up to 12 converters with the NHD-000-RACK4 or mount 2 side-by-side using the NHD-140-RACK-1U
  • Front panel audio decoding LEDs for easy signal identification
  • Manufactured under license from Dolby Laboratories

In the Box

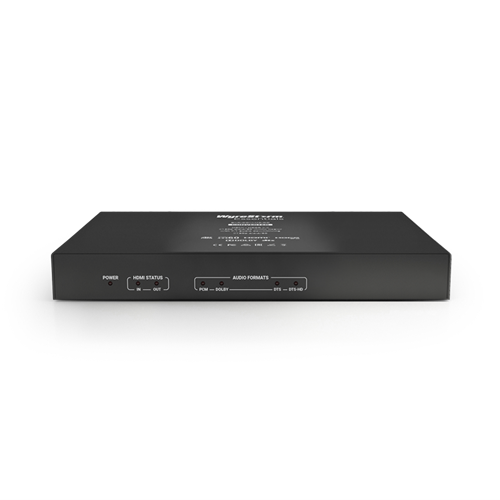

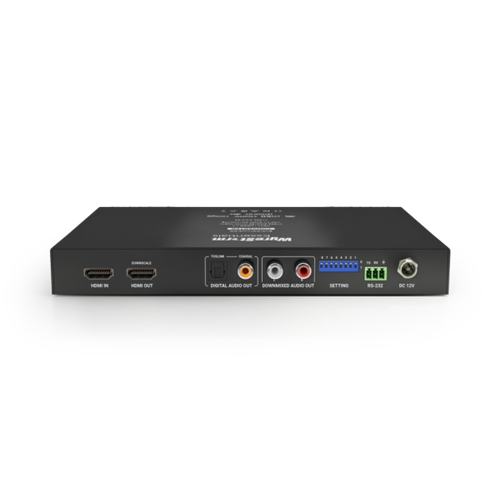

  • 1x CON-H2-DD-EARC Downmixer/scaler
  • 1x 3-pin Phoenix connector
  • 2x Rack mounting brackets (for NHD-000-RACK4)
  • 1x 12V DC 1A Power Supply with wall adaptors (US/UK/EU/AU)
  • 1x Quickstart guide (this document)

Specifications
Copyright © 2020 WyreStorm Technologies | wyrestorm.com
CON-H2-DD-EARC Specification Sheet | 200408
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2 of 3
Video
  • HDMI: v2.0b TMDS
  • Inputs: 1x HDMI In: 19-pin type A
  • Output 1:
    • 1x HDMI Out: 19-pin type A
    • Scaling output | 3840x2160p > 1920x1080p only
  • Ouput 2 (Audio Only): 1x HDMI Out: 19-pin type A
  • Maximum Transmission Bit Rate: 17.8Gbps
  • Maximum Pixel Clock: HDMI: 600MHz
  • Video Resolutions (Max)
    • Resolution / HDMI
    • 1920x1080p @60Hz 15m/49ft
    • 3840x2160p @60Hz 8bit 4:4:4 3m/10ft
    • 3840x2160p @60Hz 10bit 4:2:0 HDR 3m/10ft
    • 3840x2160p @60Hz 12bit 4:2:2 HDR 3m/10ft
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 60Hz | HLG | BT.2020 | BT.2100
Audio
  • Outputs:
    • 1x HDMI Out (1): Pass-through or 2ch re-embed
    • 1x HDMI Out (2): Audio Only | eARC to AVR or audio system
    • 1x Audio Out: RCA Stereo | DSP controlled | Volume & EQ adjustment
    • 2x Audio Out: Mirrored S/PDIF (Coaxial & Toslink) | 5.1 bitstream or 2ch downmix
  • Audio Formats (Passthrough): HDMI: 8ch LPCM | Multichannel bitstream up to Dolby Atmos and DTS-X
  • Audio Formats (Downmix): 8ch LPCM | Dolby TrueHD™ | DTS Master HD
  • Maximum Sampling Rate: 192KHz
  • Maximum Audio Channels:
    • Inputs
      • HDMI 1: 7.1Ch PCM | Dolby True HD | DTS-HD
      • eARC: 7.1Ch PCM | Dolby True HD | DTS-HD
    • Outputs
      • HDMI 2 eARC: 7.1Ch PCM | Dolby True HD | DTS-HD
      • Stereo RCA: 2ch analog
      • Digital S/PDIF: 5.1ch PCM | Dolby Digital | DTS
  • Enhanced Audio Return Channel (eARC): Supported From Output 1 only | To Output 2 HDMI, S/PDIF out (maximum 5.1) or stereo RCA downmixed
Communication and Control
  • RS-232: 1x RS-232: 3-pin Phoenix | API control
  • HDCP: Pass-through, 2.2 Supported
  • EDID: Managed
  • Consumer Electronics Control (CEC): ARC/eARC Trigger Only
  • Auto Low Latency Mode (ALLM): Not Supported
  • Variable Refresh Rate (VRR): Not Supported
Power
  • Power Supply: 12V DC 1A supplied
  • Max Power Consumption: 8W
Environmental
  • Operating Temperature: 32°F ~ 110°F (0°C ~ 40°C) | 10% ~ 90%, non-condensing
  • Storage Temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
  • Maximum BTU: 27.2 BTU/hr
Dimensions and Weight
  • Installation: <1UWall mounted | Free standing
  • Height: 25mm/0.98in
  • Width: 215mm/8.46in
  • Depth: 118mm/4.64in
  • Weight: 0.42kg/0.92lbs
Regulatory
  • Safety and Emission: CE | FCC | RoHS | RCM | EAC
