Collaboration systems

ADECIA Room Audio Processor RM-CR Yamaha

Product Code: RY-RM-CR

Brand
YAMAHA REVOLABS
RRP $2,939.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Yamaha
  • Details
  • Downloads
  • Where to Buy
  • Ordering

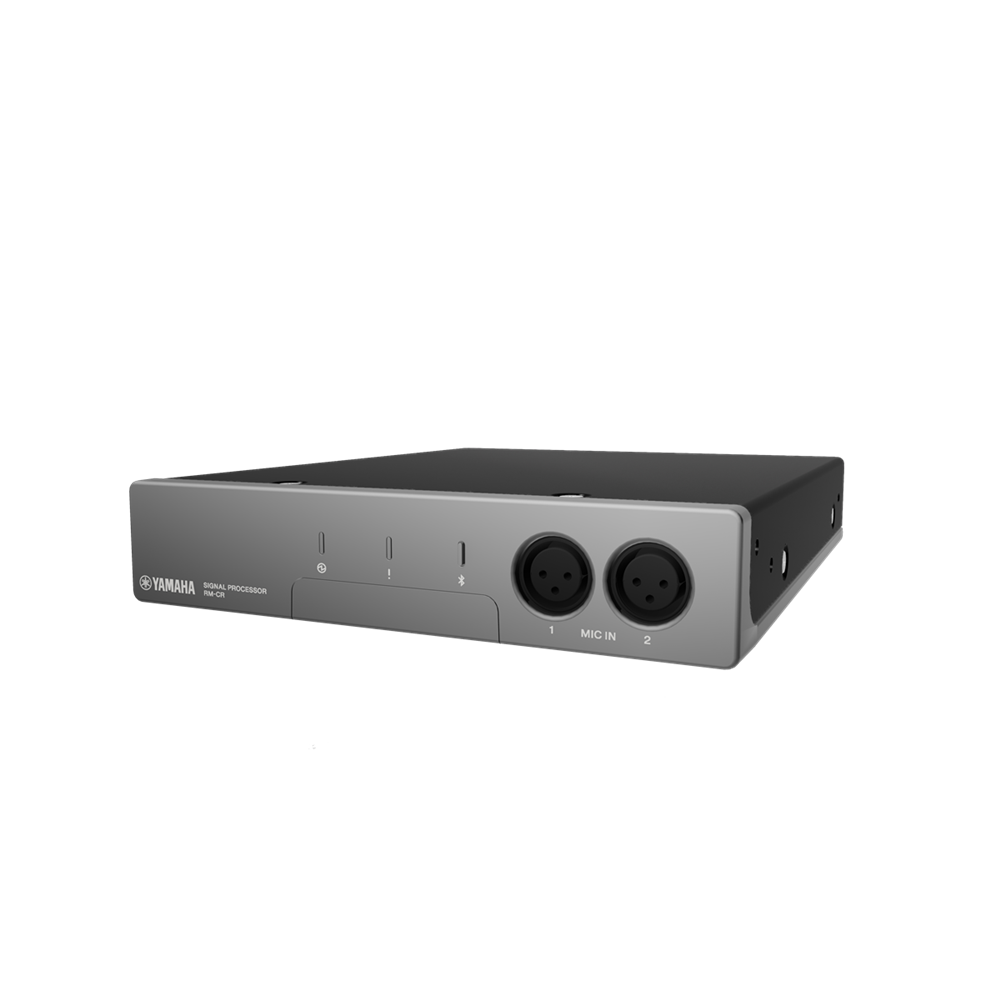

ADECIA Room Audio Processor RM-CR

Signal processor at the heart of the ADECIA, Yamaha’s Complete and Customizable Communications Solutions.


  • Up to 2 RM-CG and 2 VXL1B-16P can be connected via PoE switch SWR2311P-10G
  • Automatically recognizes connected devices on the same network for audio routing
  • Equipped with the Auto Tuning functions that automatically measure and provide the optimum sound settings for the environment
  • Equipped with the Auto Mixer functions that automatically optimizes the mixing balance of audio input via Dante
  • Equipped with various input/output connections such as USB, VoIP, analog, and Bluetooth
  • Standard network audio support for “Dante”; all compatible devices can be connected with single network cable


ADECIA Ceiling

A family of products designed to be easily installed and work seamlessly together to provide complete and customizable communications solutions for meeting spaces or classroom audio. The ADECIA ceiling microphone & line array speaker solution helps overcome challenges with implementation, configuration and room acoustics by providing all components required for a successful installation and automatic technologies that reduce set up time, costs and complexities. Watch our ADECIA video series and learn more about our new ceiling mounted microphone!




HYBRID CLASSROOM AUDIO
  • Touchless for added safety protocols
  • Easily managed remotely by AV/IT departments
  • Lecture capture + Voice-lift
  • Ability to connect to legacy products such as control systems, codecs, speakers
  • Freedom to move throughout classroom without sacrificing audio pickup

Best audio in shortest time:
  • Auto-detects installed components
  • Auto-configures the devices
  • Auto-optimizes audio performance for room audio environment (reverberation characteristics, echo behavior, speaker/mic position, and more)
Dynamic, multi-beam tracking technology:
  • Constant live tracking beams search for voice when the conference room microphone and speaker system are in use
  • Supports lively discussions with multiple participants
  • No fixed lobes = no dead spots
  • Room set up flexibility – no need to preprogram lobes when design changes

Easy install/set up:
  • Three-step guided configuration
  • No need to program fixed beams
  • Components utilize one network cable connection avoiding troublesome wiring
  • Integration into all audio environments: USB, analog I/O, Bluetooth, SIP telephony and Dante
  • Open API for integration with other Yamaha or 3rd-party components

Specifications


RM-CR GENERAL
  • Description: Signal Processor
  • Dimensions (WxDxH): W215mm×D260×H44mm
  • Weight: 1.6kg
  • Power requirements: PoE+(IEEE 802.3at, LLDP), DC 48V
  • Maximum Power Consumption: 15.0W
  • In Operation: Temperature 0℃~40℃ / Humidity 30%~90% (No condensation)
  • Storage: Temperature -20℃~60℃ / Humidity 20%~90% (No condensation)
  • Indicator: Power Indicator ・Status Indicator ・Bluetooth Indicator ・Network Port Indicator(x3)
  • Accessories: Installation Manual, USB Cable (A-B) 5 m (16.4 ft), USB Cable (A-microB) 1 m (3.3 ft), 4x Rubber foot, Access Panel
  • Mount: Table Mount, Rack Mount
  • Connector: RJ 45, USB, XLR balanced, RCA
  • Maximum Device with RM-CR: -
  • Options: RM-MTL: Table Mount Kit, RM-MRK: Rack Mount Kit


RM-CR AUDIO SPECIFICATIONS
  • Frequency response: 20Hz – 20kHz
  • Sampling Rate: 48kHz
  • Bit depth: 24bit
  • Latency: 8 [ms] (Dante In to USB Out, includes signal processing)
  • Dante: 16in x 16out
  • USB: USB2.0, Audio Class 1.0 Input: 2ch, Output: 2ch @48kHz
  • Mic Input: XLR balanced, Input 2ch
  • AUX: RCA unbalanced (Line Level), Input: 2ch, Output: 2ch
  • Speaker Out: RCA unbalanced (Line Level), Output: 2ch
  • Bluetooth: Version 4.2 Supported profiles: HFP(1.6), A2DP, AVRCP Supported codec: CVSD, SBC, mSBC Wireless output: Class2 Maximum communication distance: 10m (32.8 ft) (no obstacles) Radio frequency (operational frequency): 2,402 to 2,480 MHz Maximum output power (EIRP): 4.0 dBm (2.5 mW)
  • SIP: Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Call ID, Voice Mail Notifications (switch configured) Call Bridging Supports Bridging SIP, USB, BT and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP calls, 1 USB call, 1 Bluetooth Call, 1 AUX, plus the user Codecs G.711, G.722HD, G.729ab, G.726 DTMF Support RTP event, SIP in-band, SIP info package Security SRTP Support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs)


RM-CR NETWORK SPECIFICATIONS
  • Ether1: Dante Audio/Dante Control, Remote Control, WebUI, PoE+
  • Ether2/Ether3: Corporate Network, Remote Control, SIP, WebUI
  • USB Network (Front): USB2.0, Network Class, WebUI, Fixed IP
  • Cable requirements: Ether1/2/3 : Cate 5e or higher (STP Recommended) USB Network : USB Cable (A-microB type)

RM-CR INPUT/OUTPUT CHARACTERISTICS
  • Input Terminal: MIC IN 1,2 / AUX IN L,R
  • Input Level: Nominal -46dBu -14dBu / Max. before clip -26dBu +6dBV / Connector XLR-3-31 (Balanced)/ RCA PIN
  • Output Terminal: AUX OUT L,R / SP OUT L,R
  • Source Impedance: 1kΩ
  • For Use with Nominal: 10kΩ
  • Output Level: Nominal -14dBV / Max. before clip +6dBV / Connector RCA PIN
