  • Airplate S9 Cabinet Cooler 3 x 120mm 4417LPM @21dBA AC Infinity - Includes P/Pack

Airplate S9 Cabinet Cooler 3 x 120mm 4417LPM @21dBA AC Infinity - Includes P/Pack

Product Code: AI-APS9/KT

Brand
AC Infinity
$199.00 inc GST
RRP $199.00

In Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Kit Components
Code
Item
Qty
AI-APS9
Airplate S9 3x120mm Cabinet Cooler 156CFM @ 21dBA AC Infinity
1.0
AI-USBPP
2.4 Amp USB Powerpack AC Infinity
1.0
Technical Specifications
Brands AC Infinity
Cooler type Cabinet
  • Details
  • Downloads
  • Where to Buy
  • Ordering

AIRPLATE S9, 18" Unit, Triple Fan /w Speed Control - BLK

Product Features

  • An ultra-quiet fan system designed for cooling cabinets that requires minimal noise.
  • Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
  • Contains a CNC machined aluminum frame with a modern brushed black finish.
  • Powered by wall outlet or USB port, included AC Wall Adapter
  • Dimensions: 17.5 x 6.1 x 1.3 in. | Total Airflow: 156 CFM | Total Noise: 27 dBA | Technical Data Tab

Product Description
The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Features a speed controller and 6 foot power cord. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE, UL, TUV, and RoHS. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through an USB port or standard wall outlet.

Speed Controller and Boost Adapter
The in-line multi-speed controller with power switch allows setting the fan’s speed to optimal noise and airflow levels for various environments. The included Boost Adapter not only allows the fan to be powered through a wall outlet, but increases its performance by up to 25%.

Connecting Additional Units
For cabinets that requires more airflow, each unit can be connected to additional AIRPLATE S and T series cabinet fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S3/T3 contains one fan, AIRPLATE S7/T7 contains two fans, and AIRPLATE S9/T9 contains three fans.

Applications

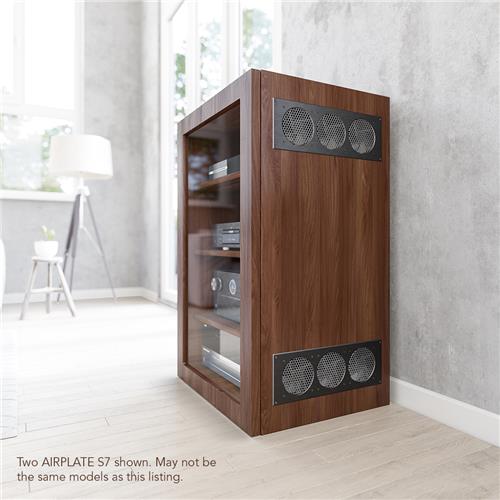

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

Technical Data

Product Identification
Manufacturer

  • AC Infinity Inc.

Product Name

  • AIRPLATE S9

Product Model

  • AI-APS9

UPC Code

  • 854759004549

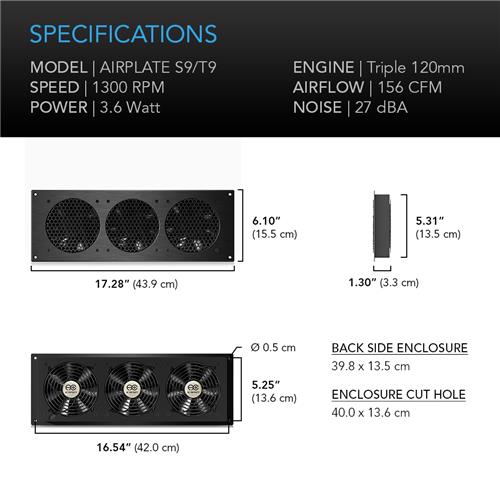

Product and Mounting Dimensions - Fan Unit
Total Dimensions

  • 17.50 x 6.10 x 1.30 in (43.9 x 15.5 x 3.3 cm)

Backside Enclosure Dimensions

  • 15.67 x 5.31 in (39.8 x 13.5 cm)

Required Mounting Hole

  • 15.75 x 5.35 in (40.0 x 13.6 cm)

Hole to Hole Distance

  • 16.54 x 5.25 in (42.0 x 13.6 cm)

Screw Hole Size

  • Ø 0.197 in (Ø 0.5 cm)

Cord Length

  • 72 in (6 feet)


Product Performance and Technical Specs
Total Airflow

  • 156 CFM

Total Noise

  • 27 dBA

Static Pressure

  • 1 mm-H2O

Operating Voltage

  • 3 to 7V DC

Power

  • 3.6 W

Current

  • 1.56 A

Wall Adapter Input

  • 100 to 240V AC

Operating Humidity

  • 35 to 85% RH

Operating Temperature

  • 14 to 230°F

Fan Bearings

  • Dual Ball

L10 Life Expectency

  • 67,000 Hours

Fan Quality Approvals

  • UL, CE, TUV, RoHS
