PTZ Cameras

Aver CAM520PRO2 PTZ Camera CAM520PRO2 Aver

Product Code: AF-CAM520PRO2

Brand
Aver
RRP $2,159.00


Unit of Measure
EACH



3 Year
Technical Specifications
Brands AVer
Native Resolution 1080p
  • Details
  • Downloads
  • Where to Buy
  • Ordering

CAM520 Pro2

Conference Camera

Intelligently Present Every Detail

Professional conferencing camera for mid-to-large rooms
The CAM520 Pro2 is an industry-leading conferencing camera. Its 18X total zoom, upgraded AVer SmartFrame, Preset Framing, Sony True WDR, IP video streaming, and a PoE port take your video conferencing experience to the next level!

  • Full HD 1080p
  • 18X total Zoom
  • Auto Framing
  • Enterprise-Grade Imaging

Present Every Detail with an 18X Total Zoom

Claim your advanced business benefits by presenting products in ultimate clarity and showing full details with an 18X total zoom. The CAM520 Pro2 provides smoother video imaging than ever with up to 1080p, 60fps quality. Zoom in tightly on every facet of your products to win more business!

Hold Efficient and Safe Meetings with Upgraded AVer SmartFrame

Keep meetings efficient and safe with AVer’s upgraded SmartFrame. This function uses next-generation facial and body detection to automatically frame people who are wearing masks or presenting any facial profile from up to 7~10 meters away!

Smartly track presenters through preset areas by adding a CAM520 Pro2 and its Preset Framing mode. You can set multiple preset viewing areas that the camera will automatically follow presenters through. There’ s no need for a remote control!


Access Video Calls Without the Hassle of Connecting a USB Cable!

AVer Virtual Streaming technology makes the CAM520 Pro2 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.

* Only available in Windows PC. Doesn’t support in MAC PC.


Share Live Video Online Anytime with IP Streaming

Livestream on YouTube or Facebook! Easily create live video content with the CAM520 Pro2 by using an H.264 RTSP/RTMP stream to your cloud base or on-premise streaming delivery network.


Enterprise-Grade Imaging with True WDR

Enjoy vivid meetings even in high-contrast backlight environments when you use the CAM520 Pro2. Embedded Sony True WDR is effective at up to 120dB, automatically refining highlights, shadows, and white balance. You deserve to experience enterprise-grade imaging in every meeting.


Specifications


  • Camera
    • Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
    • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
    • SmartFrame for automatic FOV adjustment to fit all participants
    • Innovative Preset Framing: Follow presenter based on preset areas
    • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
    • Zoom: 18X total zoom (12X optical zoom)
    • Field of view(D/H/V):84.5°/76°/48°
    • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
    • Lens F#: 1.8 (wide) ~ 2.8 (tele)
    • Mirror, flip, AE, white balance: auto/manual override via PTZApp2
    • Minimum focus distance: 1.5 m
    • Standard tripod screw holes and Kensington slot
    • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
  • Motorized Pan & Tilt Movement
    • Pan: ±170°
    • Tilt: +90° (up) -30° (down)
    • 10 camera presets (via remote control)
    • Fast and quiet pan/tilt movement
  • Video Format
    • YUV, YUY2, MJPEG, NV12
    • Network video compression format: H.264
    • Network protocol: RTSP, RTMP

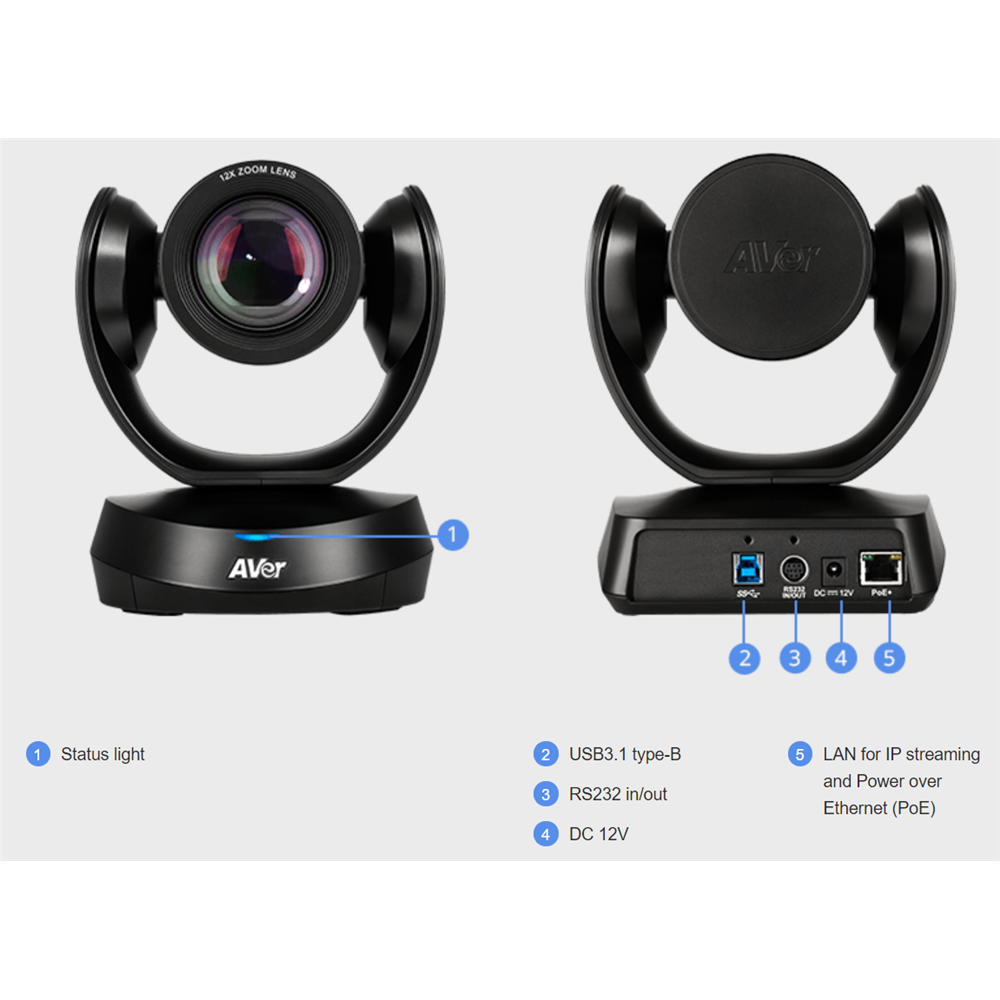

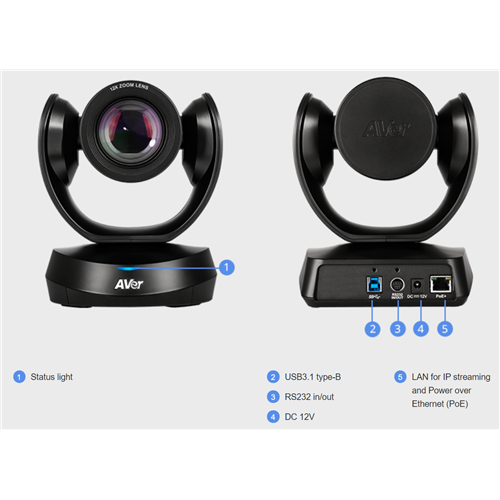

  • Connectivity
    • 12V/2A power adaptor
    • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
    • USB 3.1 type-B connector
    • IP (RJ45)
  • USB
    • 3.1 Gen1 Type B, backward compatible with USB 2.0
    • UVC (USB video class) 1.1
  • Control
    • IR remote control
    • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
    • Remote side: VISCA over IP, IP (RJ45)
    • UVC/UAC plug and play
    • WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
    • PTZApp 2
  • Package Contents
    • CAM520 Pro2 unit
    • Remote control
    • 5m, USB2.0 type-B to type-A cable
    • Power adapter (10 ft/3 m)
    • QR code card
    • Wall-mount bracket
    • ¼" tripod screw
    • Mini DIN9 to mini DIN8 RS232 adapter
  • Optional Accessories
    • Mini DIN8 to D-SUB9 RS232 adapter
    • Foldable TV mount
    • Ceiling mount
    • USB3.1 fiber extender 10m/20m/30m
    • USB3.1, 3m type-B to type-A cable
  • Mount
    • Camera wall-mount bracket included
    • Optional foldable TV mount
    • Optional ceiling mount
  • System Requirements
    • Windows® 7/10
    • Windows® 10 Enterprise (IoT) LTSC (version 1809)
    • Mac OS X 10.7 or higher
    • Google Chromebook™ version 29.0.1547.70
  • Hardware Specs*
    • 3.2 GHz Intel® Core™ i5-4460 processor
    • 4 GB RAM or more
    • USB 3.1 port , backward compatible with USB2.0 port
  • Web page browser requirement
    • Chrome: version 76.x or above
    • Firefox: version 69 or above
    • IE: Not support
  • Power Supply
    • AC 100V ~ 240V, 50/60 Hz
    • Consumption: 12V, 2A
    • PoE+: 802.3at
  • Free Applications for Meeting Collaboration (Windows® and MAC)
    • EZManager 2 : Camera Central Management software
      • Remotely manage group FW/SW updates, camera control, and settings
    • PTZApp 2
      • Support Virtual Streaming function.*
      • Compatible with Skype for business far-end control
      • Upgrade firmware automatically or manually
      • Control camera
      • Set parameters and adjust camera image
      • Diagnose operating status
      • View live video
    • EZLive
      • Real-time streaming / annotating / image capturing / video recording
  • *Only available in Windows PC. Doesn't support in MAC PC.
  • Environmental Data
    • Operation temperature: 0°C ~ 40°C
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20°C ~ 60°C
    • Storage humidity: 20% ~ 80%
  • Dimensions
    • Package dimensions: 256 x 256 x 274 mm
    • Package weight: 3.335 kg/7.35 lbs
    • Camera: 182 x 142.7 x 153 mm/1.47 kg
    • Remote control: 200 x 50 x 21 mm/0.09 kg
  • Warranty
    • Camera: 3 years
    • Accessories: 1 year
  • Compatible Applications
    • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
  • ** Specifications may vary depending on countries and are subject to change without notice.
