Wireless microphone systems

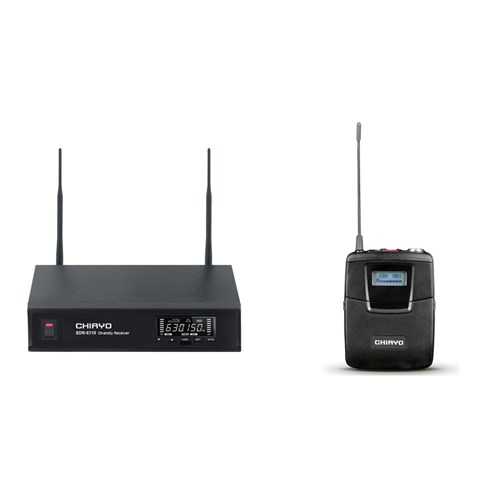

CW6110B UHF Microphone kit SDR6110 / SM6100 with MC16 lavalier microphone

Brand
Chiayo
RRP $555.01


Increase value Decrease value
Unit of Measure
EACH



5 Year
Kit Components
Code
Item
Qty
CH-SDR6110-5A
Uhf Div Receiver 520Mhz SDR6110-5A Chiayo
1.0
CH-SM6100-5A
100 Ch B/Pack & Mic 520Mhz SM6100-5A Chiayo
1.0
Technical Specifications
Brands Chiayo Electronics
  • Details
  • Downloads
  • Where to Buy
  • Ordering

SDR-6110 IrDA

Single-Channel 2-way Sync Diversity Receiver

Features
  • EIA Standard 1/2U rack-mountable metal chassis with high contrast LCD display.
  • (Channel, frequency, RF level, AF level, antenna selection and transmitter battery level.)
  • 100 factory preset user-selectable UHF channels.
  • Pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts.
  • Adjustable SQ. Increases receiver range with higher sensitivity and reduces interference with lower sensitivity.
  • Auto Scan function allows quick search for an interference-free working channel from 100 presets. World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Convenient gain/volume control(s) and switchable MIC-LINE output levels for connecting either MIC or LINE inputs.
  • Receiver provides power for CHIAYO antenna systems to enhance reception range and signal stability.
  • Buttons lockable to prevent unintended adjustment.
  • Audio output jacks: balanced XLR or unbalanced 6.3mm.
ModelSDR-6110 IrDA
ChannelSingle
ChassisEIA standard 19" 1/2U
Frequency RangeUHF 500 - 960 MHz
Bandwidth25 MHz
Receiving ModeDiversity
Peak Deviation± 40 kHz
Channel Sync2-way (RX ⇔ TX)
SensitivityS/N > 80 dBm at 10 dBμV
S/N Ratio> 110 dB(A)
T.H.D.< 0.5% @ 1 kHz
Frequency Response50 Hz - 18 KHz
Receiving AntennaRear Panel. Detachable.
Preset Frequencies100
Oscillation ModePLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
SquelchPilotone & Noise-cancelling dual-squelch circuit
Audio Output AdjustmentGain control circuit for adjustment of output volume
Output ConnectorBalanced XLR and unbalanced 6.3 Ø
Output Level SwitchMIC-LINE
Power Supply12V DC,1.0A
Power Consumption12 W
Dimensions (W × H × D)200 × 44 × 150 mm
Weight0.73kg

** The above specifications are subject to change without prior notice.



SM-6100 IrDA

Rechargeable Bodypack Transmitter

Features
  • Mini, robust and lightweight plastic housing design.
  • World-first IrDA function provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Clear and intuitive LCD display for easy operation and quick set-up.
  • On-the-top features include power switch, mini-XLR connector and antenna.
  • Mini XLR input for lavalier, headset, earset microphones and guitar.
  • Adjustable belt clip allows wearing in up or down position.

ModelSM-6100 IrDA
Frequency RangeUHF 500 – 960 MHz
Bandwidth25 MHz
Preset Channels100
RF power output≦ 35mW
HousingABS
Dimensions84 × 64 × 23 mm
Weight76 g
Battery2 × AA
Operating time16 hours

** The above specifications are subject to change without prior notice.

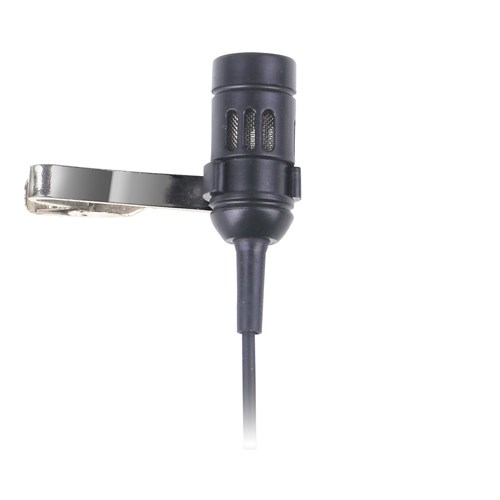

MC-16+

Uni-Directional Lavalier Microphone

ModelMC-16+
Microphone TypeCondenser
Sensitivity-60dB (0dB=1V/Pa at 1KHz)
Output Impedance1KΩ at 1KHz
Polar PatternUni-Directional
Frequency Response80~16000 Hz
Operating Voltage1.5~10V DC
Current Consumption≦0.5mA
S/N Ratio≧60dB
ConnectorMini XLR
Weight (g)20

** The above specifications are subject to change without prior notice.
