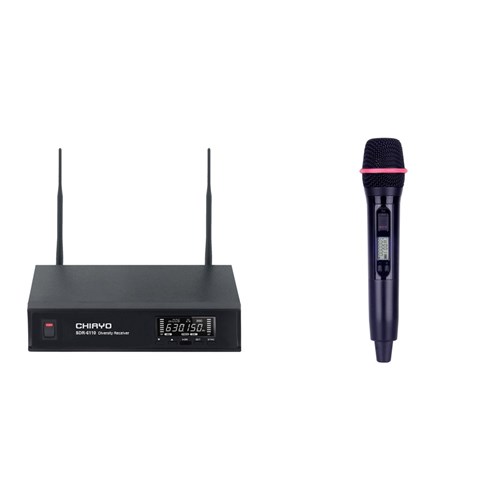

CH-CW6110HDV - UHF Microphone kit Sdr6110 Sq5100d

Brand
Chiayo
RRP $609.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Kit Components
Code
Item
Qty
CH-SDR6110-5A
SDR6110 UHF 100 channel diversity receiver Chiayo
1.0
CH-SQ5100D-5A
SQ5100D 100 Ch H/Held Dyn Mic 520Mhz Chiayo
1.0
Technical Specifications
Brands Chiayo Electronics
Microphone Type Wireless Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering

CH-CW6110HDV - UHF Microphone kit cont. Sdr6110 receiver & Sq5100d transmitter

SDR6110 receiver with SQ5100D hand held transmitter with dynamic capsule. Specify either band 5A, 5B or 6. Compatible with HC92 Charging station


SDR-6110 IrDA

Single-Channel 2-way Sync Diversity Receiver


Features
  • EIA Standard 1/2U rack-mountable metal chassis with high contrast LCD display.
  • (Channel, frequency, RF level, AF level, antenna selection and transmitter battery level.)
  • 100 factory preset user-selectable UHF channels.
  • Pilotone and noise-cancelling dual-squelch circuits eliminate noise, interference and reduce signal dropouts.
  • Adjustable SQ. Increases receiver range with higher sensitivity and reduces interference with lower sensitivity.
  • Auto Scan function allows quick search for an interference-free working channel from 100 presets. World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Convenient gain/volume control(s) and switchable MIC-LINE output levels for connecting either MIC or LINE inputs.
  • Receiver provides power for CHIAYO antenna systems to enhance reception range and signal stability.
  • Buttons lockable to prevent unintended adjustment.
  • Audio output jacks: balanced XLR or unbalanced 6.3mm.

Specifications

  • Channel: Single
  • Chassis: EIA standard 19" 1/2U
  • Frequency Range: UHF 500 - 960 MHz
  • Bandwidth: 25 MHz
  • Receiving Mode: Diversity
  • Peak Deviation: ± 40 kHz
  • Channel Sync: 2-way (RX ⇔ TX)
  • Sensitivity: S/N > 80 dBm at 10 dBμV
  • S/N Ratio: > 110 dB(A)
  • T.H.D.: < 0.5% @ 1 kHz
  • Frequency Response: 50 Hz - 18 KHz
  • Receiving Antenna: Rear Panel. Detachable.
  • Preset Frequencies: 100
  • Oscillation Mode: PLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
  • Squelch: Pilotone & Noise-cancelling dual-squelch circuit
  • Audio Output Adjustment: Gain control circuit for adjustment of output volume
  • Output Connector: Balanced XLR and unbalanced 6.3 Ø
  • Output Level Switch: MIC-LINE
  • Power Supply: 12V DC,1.0A
  • Power Consumption: 12 W
  • Dimensions (W × H × D): 200 × 44 × 150 mm
  • Weight: 0.73kg
  • ** The above specifications are subject to change without prior notice.

SQ-5100 IrDA

Rechargeable Handheld Microphone

Features
  • Sturdy plastic housing in aesthetic and ergonomic style.
  • World-first IrDA function provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Slide switch to lock transmitter on stand-by mode.
  • 3-step power control to switch between ON-MUTE-OFF status.
  • Interchangeable dynamic and condenser capsule modules for versatile, professional live sound.
  • High-efficiency antenna inside the bottom housing with color-coded caps for easy channel identification.
  • Clear and intuitive LCD display for easy operation and quick set-up.
  • Adjustable gain keeps full dynamic range and high-definition modulation without distortion.

Specifications

Frequency RangeUHF 500 – 960 MHz
Bandwidth25 MHz
Preset Channels100
RF power output≦ 35mW
HousingABS
Dimensions (Ø×L)53 × 256 mm
Weight230 g
Battery2 × AA
Operating time16 hours

** The above specifications are subject to change without prior notice
