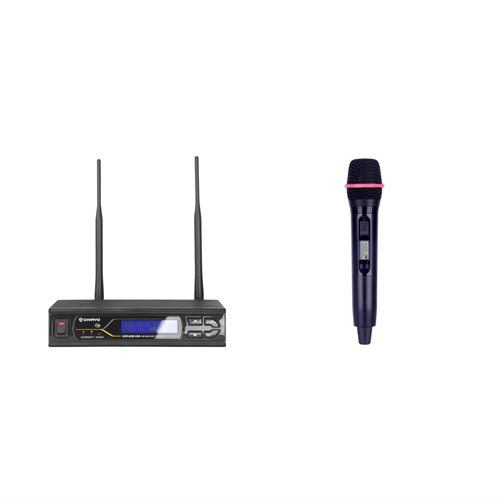

CW6200HDV UHF Microphone kit SDR6200 / SQ5100D with dynamic capsule.

Brand
Chiayo
RRP $669.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Kit Components
Code
Item
Qty
CH-SDR6200-5A
SDR6200 UHF 100 channel true diversity receiver Chiayo
1.0
CH-SQ5100D-5A
SQ5100D 100 Ch H/Held Dyn Mic 520Mhz Chiayo
1.0
Technical Specifications
Brands Chiayo Electronics
Microphone Type Wireless Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering

CW6200HDV UHF Microphone kit SDR6200 / SQ5100D with dynamic capsule.

SDR6200 receiver with SQ5100D hand held transmitter with dynamic capsule. Specify either band 5A, 5B or 6. Compatible with HC92 Charging station

SDR-6200 IrDA

Single-Channel 2-way Sync True Diversity Receiver

Features
  • EIA Standard 1/2U rack-mountable metal chassis with high contrast LCD displaying channel, frequency and menus. Indicators include RF and AF meters and antenna selection LED.
  • 100 factory preset user-selectable UHF channels.
  • True diversity reception for best performance and reliability.
  • Adjustable SQ. Increases receiver range with higher sensitivity and reduces interference with lower sensitivity.
  • Auto Scan function allows quick search for an interference-free working channel from 100 presets. World-first patented IrDA technology provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Receiver provides power for CHIAYO antenna systems to enhance reception range and signal stability.
  • Audio output jacks: balanced XLR or unbalanced 6.3mm
Specifications
ModelSDR-6200 IrDA
ChannelSingle
ChassisEIA standard 19" 1/2U
Frequency RangeUHF 500 - 960 MHz
Bandwidth25 MHz
Receiving ModeTrue diversity
Peak Deviation± 40 kHz
Channel Sync2-way (RX ⇔ TX)
SensitivityS/N > 80 dBm at 10 dBμV
S/N Ratio> 110 dB(A)
T.H.D.< 0.5% @ 1 kHz
Frequency Response50 Hz - 18 KHz
Receiving AntennaRear Panel. Detachable.
Preset Frequencies100
Oscillation ModePLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
SquelchPilotone & Noise-cancelling dual-squelch circuit
Audio Output AdjustmentGain control circuit for adjustment of output volume
Output ConnectorBalanced XLR and unbalanced 6.3 Ø
Power Supply12V DC,1.0A
Power Consumption12 W
Dimensions (W × H × D)200 × 44 × 150 mm
Weight0.63kg

** The above specifications are subject to change without prior notice.


SQ-5100 IrDA

Rechargeable Handheld Microphone

Features
  • Sturdy plastic housing in aesthetic and ergonomic style.
  • World-first IrDA function provides rapid and precise 2-way frequency sync between the receiver and transmitter.
  • Slide switch to lock transmitter on stand-by mode.
  • 3-step power control to switch between ON-MUTE-OFF status.
  • Interchangeable dynamic and condenser capsule modules for versatile, professional live sound.
  • High-efficiency antenna inside the bottom housing with color-coded caps for easy channel identification.
  • Clear and intuitive LCD display for easy operation and quick set-up.
  • Adjustable gain keeps full dynamic range and high-definition modulation without distortion.
Specifications
ModelSQ-5100 IrDA
Frequency RangeUHF 500 – 960 MHz
Bandwidth25 MHz
Preset Channels100
RF power output≦ 35mW
HousingABS
Dimensions (Ø×L)53 × 256 mm
Weight230 g
Battery2 × AA
Operating time16 hours

** The above specifications are subject to change without prior notice.
