Collaboration systems

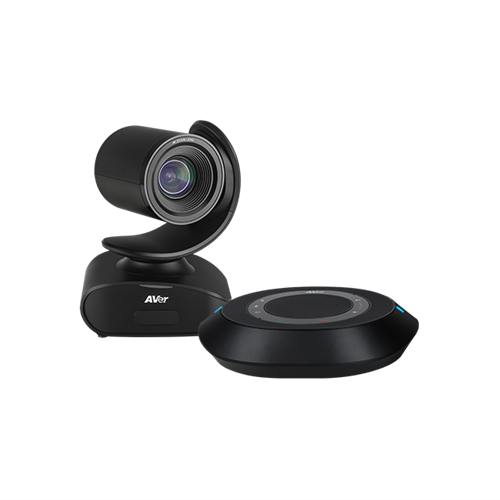

USB 4k VC System VC540 Aver

Product Code: AF-VC540

Brand
Aver
RRP $3,079.00


Quantity In Cart:
Unit of Measure
EACH



3 Year
Technical Specifications
Brands AVer
Product Category Collaboration systems
Native Resolution 4K
  • Details
  • Downloads
  • Where to Buy
  • Ordering

VC540 Superior Audiovisual System for Collaboration


4K Conference Camera with Bluetooth® Speakerphone for Medium-to-Large Rooms

The VC540 pairs an upgraded speakerphone with a 16X total zoom camera to make remote meetings feel like in-person interactions. With 4K camera quality and IP-based management features for the speakerphone, the VC540 is the professional conferencing system that truly meets your enterprise needs.

  • 4K
  • Bluetooth
  • 16X zoom
  • Auto Framing
  • Expansion Speakers/ Microphones

Bluetooth Makes Things Simple
Get rid of complicated cables. The upgraded speakerphone’s Bluetooth capability makes connecting to tablets and mobile phones easy, and it keeps your conference room clean so you can make a strong impression.

AVer SmartFrame Gets Your Meetings Started Fast
The VC540 delivers the efficiency of AVer SmartFrame to your meeting room. SmartFrame maximizes the viewable field with an auto-framing solution that quickly and effortlessly puts everyone in your meeting into frame.

Professional Clarity with a 16X total Zoom
Enhance your communication by showing every detail precisely and smoothly. The VC540 is embedded with a 16X total zoom and multi-coated autofocus optics to present complex product details in crystal-clear quality.

Cutting-Edge 4K Ultra HD
The VC540 uses a Sony™ high-quality sensor and multi-lens glass to provide the sharpest video possible. Also, an advanced image-processing engine allows you to display natural, vividly colored details even in challenging lighting conditions and on very low-latency networks.

Specifications

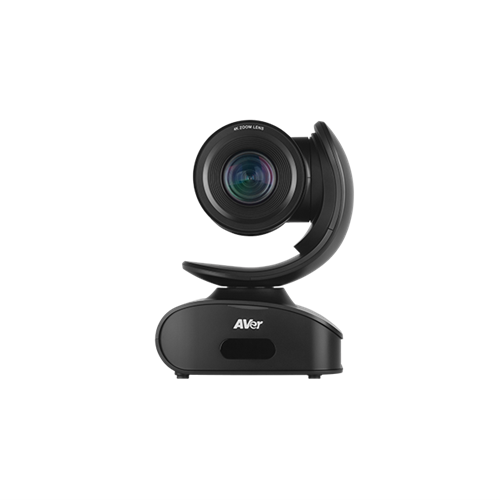

Camera
  • Ultra-crystal-clear image support up to 4K
  • Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps
  • SmartFrame: automatic FOV adjustment to fit all participants
  • 16X zoom
  • Autofocus: minimum working distance 1 meter
  • 86° horizontal field of view
  • Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
  • Standard tripod screw holes
  • Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage

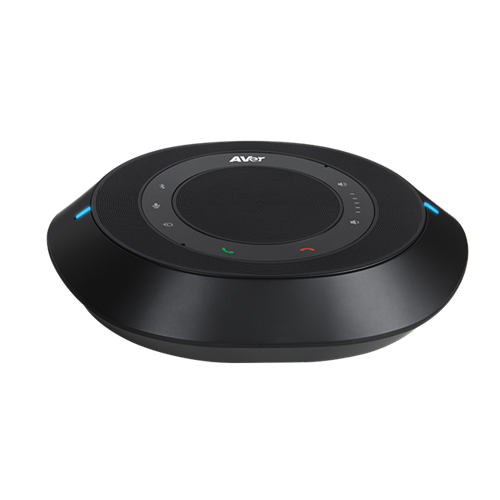

Speakerphone
  • Bluetooth / USB Wired
  • Full-duplex microphone array with echo cancellation
  • Advanced noise suppression
  • 2-microphone array
  • 3.5 mm phone-in Jack
  • 3.5 mm line out
  • Speaker volume: adjustable to 90 dB SPL at 0.5 m
  • Touch controls for volume down/up, mute, phone input, call, and hang up
  • Can bridge phone-in and USB into one call
  • Security: Kensington slot
Motorized Pan & Tilt Movement
  • Pan: ±160°
  • Tilt: +90° (up) -30° (down)
  • 10 camera presets (via remote control)
  • Fast and quiet pan & tilt movement

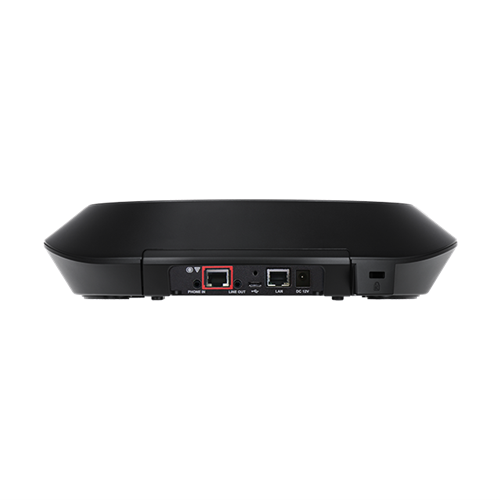

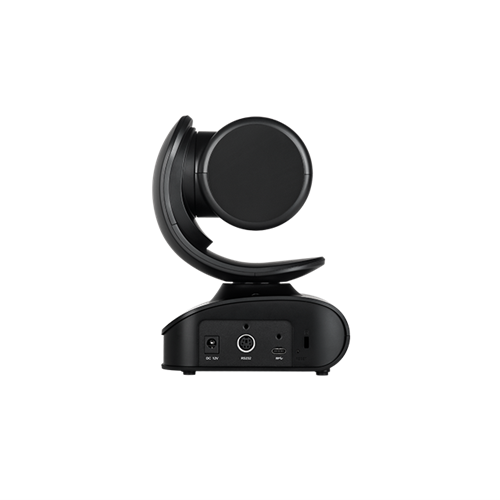

Connectivity
  • Mini DIN 6 for RS232 connector for camera
  • USB Type-C connector for camera
  • Micro USB connector for speakerphone
  • IP (RJ45) connector for speakerphone
  • Bluetooth for speakerphone
Video Format
  • YUV, MJPEG
USB
  • 2.0, 3.1 Gen1
  • UVC (USB Video Class) 1.1
  • UAC (USB Audio Class) 1.0
Control
  • IR remote control
  • VISCA/pelco and P/pelco D via RS232
  • UVC/plug-and-play
  • PTZApp
Optional Accessories
  • Mini DIN 6 to RS232 adapter for camera
  • Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
  • Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
  • USB 2.0 type-C to type-A Cable (16 ft)
Warranty**
  • Camera/Speakerphone: 3+2 years
  • Accessories: 1 year
Security and Mount
  • Camera mount included for wall or ceiling
  • Kensington slot
System Requirements*
  • Windows® 7/10 or later
  • Mac OS X v10.13 or later
  • Google Chromebook™ version 76.0.3809.102 or later
  • Android™ 6 or later
Hardware Specifications*
  • Processor: 3.2 GHz Intel® Core™i5-4460 or later
  • 4 GB RAM
  • USB 3.1 port, backward compatible with USB 2.0 port
Free Applications for Meeting Collaboration (for Windows® and Mac Devices)
  • PTZApp
    • Upgrade firmware automatically or manually
    • Control camera
    • Set parameters and adjust camera image
    • Diagnose operating status
    • View live video
  • EZLive
    • Real-time streaming / annotating / snapshots /video recording
Environmental Data
  • Operation temperature: 0°C ~ 40°C
  • Operation humidity: 20% ~ 80%
  • Storage temperature: -20°C ~ 60°C
  • Storage humidity: 20% ~ 80%
Dimensions
  • Package dimensions: 259 x 259 x 349 mm
  • Package weight: 4.6 kg
  • Camera: 130.7 x 97.8 x 171.1 mm
  • Speakerphone: 220 x 181.5 x 49.5 mm
  • Remote control: 200 x 50 x 21 mm
Package Contents
  • CAM540 Camera
  • FONE540 Speakerphone
  • Remote control
  • Power adapter x 2
  • Power cord (6 ft)
  • USB 3.1 type-C to type-A Cable (6 ft)
  • Micro USB 2.0 to Type-A cable (16 ft)
  • 3.5 mm aux cable (3 ft)
  • Warranty card
  • Quick Start Guide
  • Metal mount, tripod screws
  • Batteries
Compatible Applications
  • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting ®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit

* For 4K UHD support, please check your system/hardware requirements with your software application provider.
** Please register online to receive a free 2-year warranty extension. For detailed warranty information, please contact an AVer representative.
*** Specifications may vary depending on location and are subject to change without notice.
