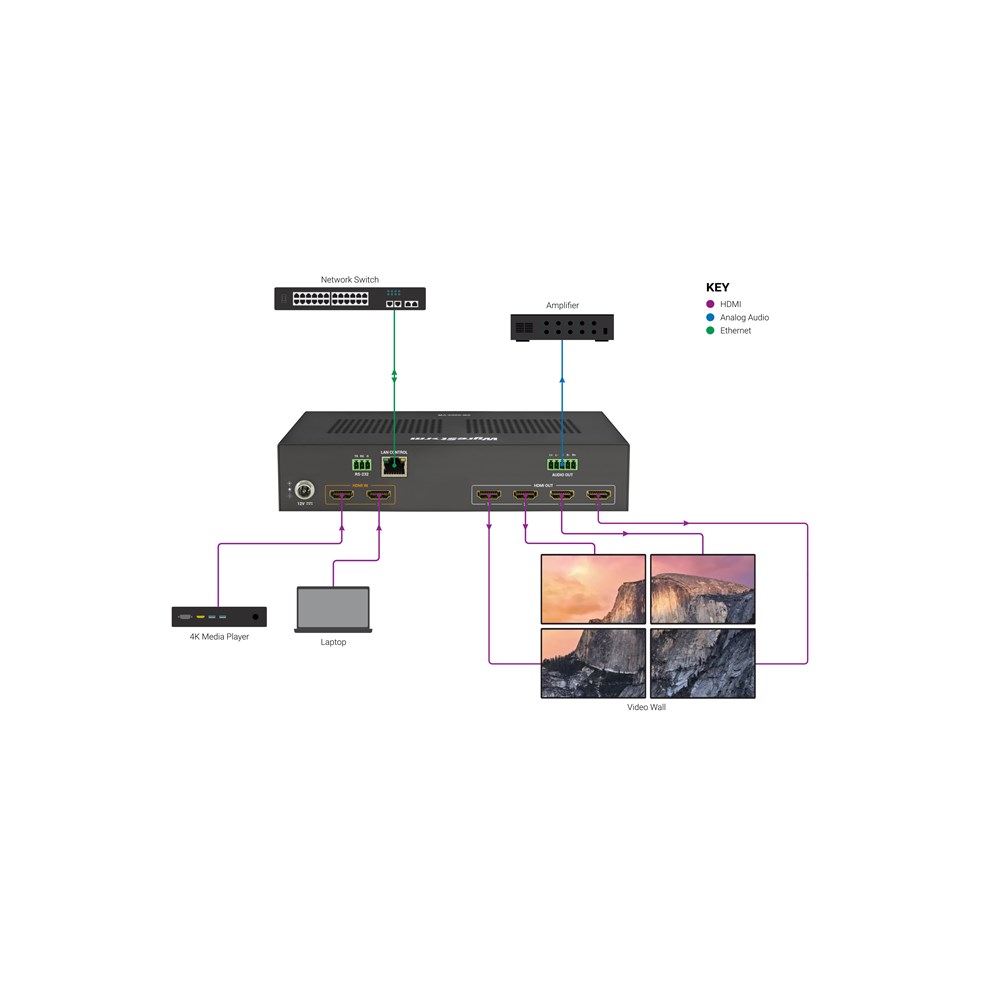

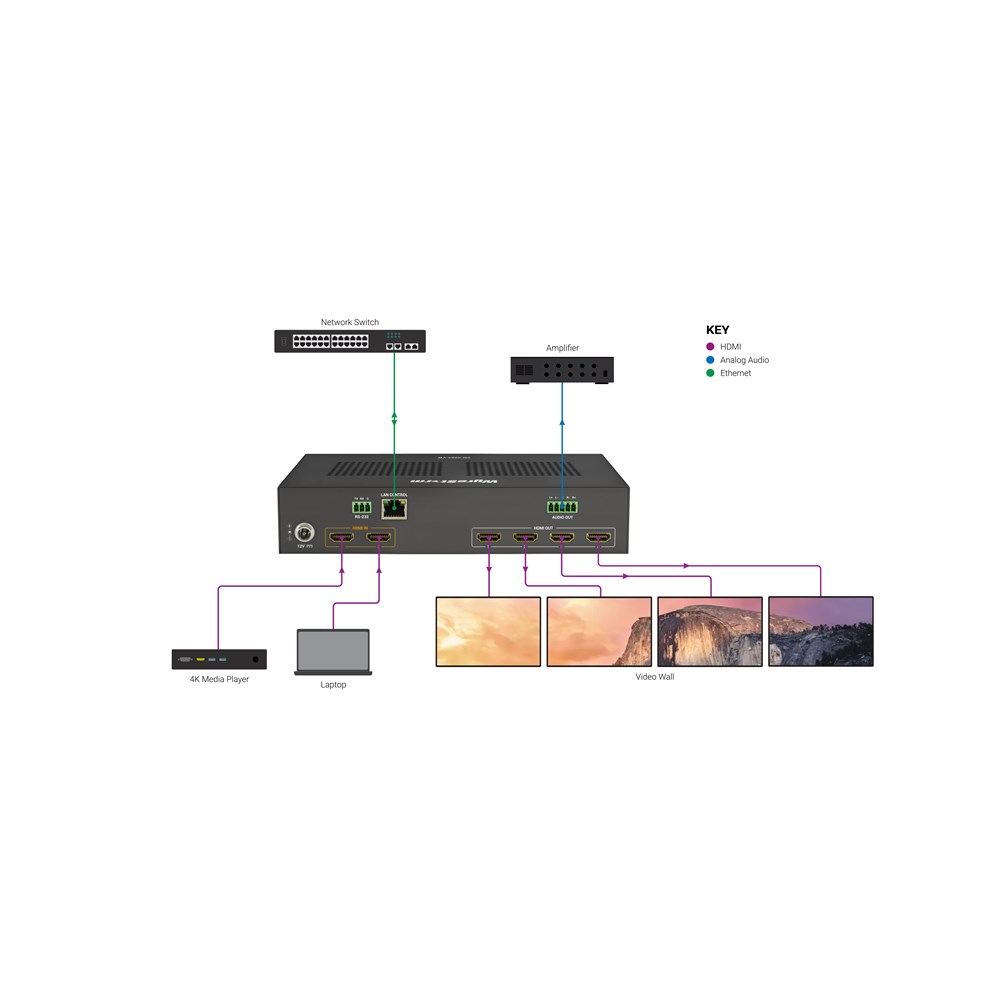

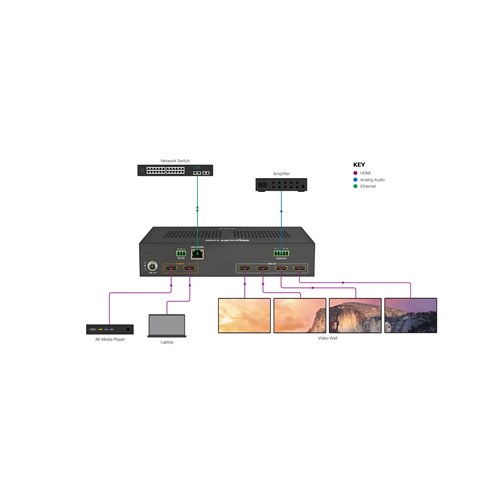

The SW-0204-VW supports 4-screen video walls with selectable modes, including 1×4 and 2×2 configurations. It extends the input video source across four displays, delivering stunning visual detail and an enhanced viewing experience. Advanced features, such as bezel correction, video wall flip, and flexible layout adjustments, allow precise customization for seamless multi-screen alignment.
Fully compatible with 4K@60Hz video content, the SW-0204-VW adheres to HDMI 2.0 and HDCP 2.3 standards. Its built-in scaling processor allows both upscaling and downscaling to resolutions up to 4K@60Hz 4:4:4, ensuring superior image quality and a fully immersive visual experience.
Supporting ultra-wide resolutions such as 3840×600, the SW-0204-VW is ideal for landscape-oriented video walls. This feature makes it a perfect choice for digital signage, conference rooms, and large-scale presentations.
The SW-0204-VW offers advanced audio functionality, including audio de-embedding from HDMI inputs and an audio mute option. These features provide clear, reliable audio output, complementing the visual performance of the video wall.
AUDIO AND VIDEO

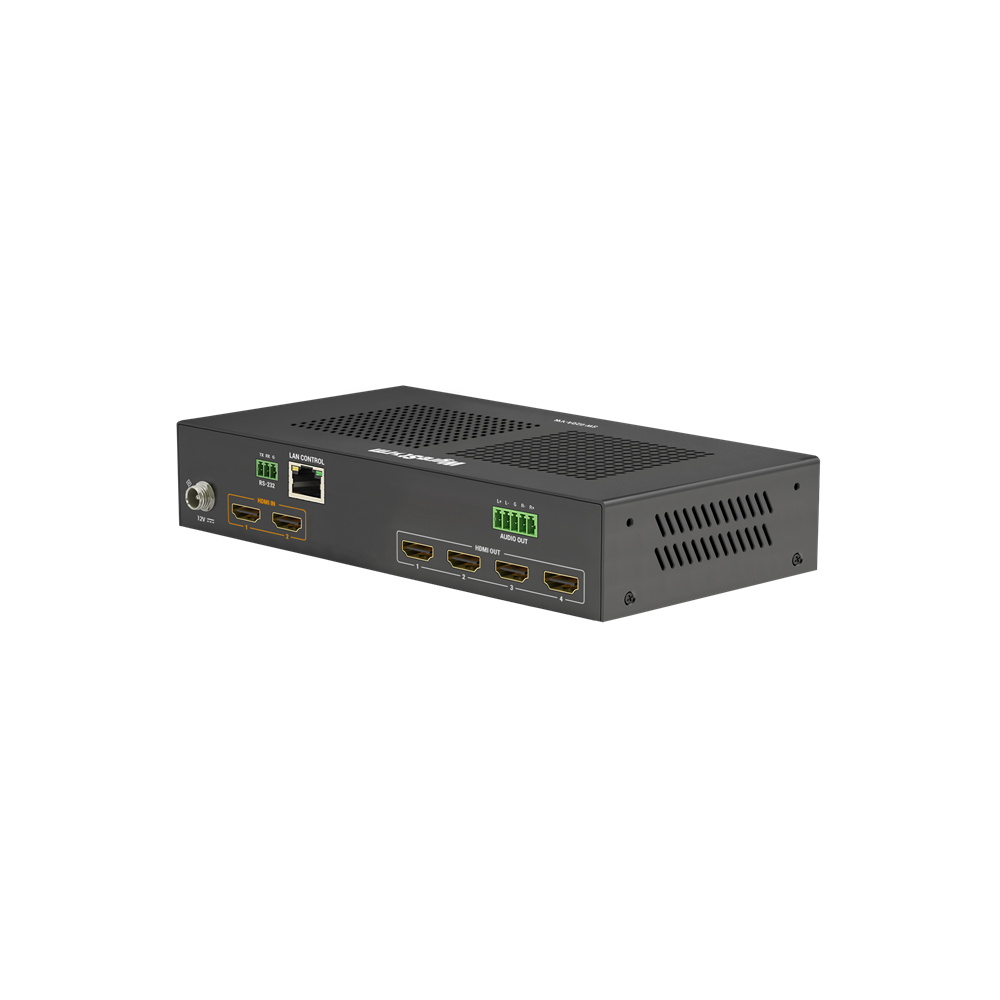

Inputs
2x HDMI IN: 19-pin type A
Outputs
4x HDMI OUT: 19-pin type A1x 5-pin Phoenix Analog Audio with balance (de-embed from selected HDMI input)
Audio Formats
PCM 2ch Analog
Input Video Resolution
800 x 6008, 1024 x 7688, 1280x720P6,7,8 , 1280 x 7688, 1280 x 8008, 1280 x 9608, 1280 x 10248, 1360 x 7688, 1366 x 7688, 1440 x 9008, 1600 x 9008, 1600 x 12008, 1680 x 10508,1920x1080P6,7,8 , 1920 x 12008, 3840 x 6008, 3840x2160P2,3,5,8* , 4096x2160P2,3,5,8*
1=at 23.98 Hz, 2=at 24 Hz, 3=at 25 Hz, 4=at 29.97 Hz, 5=at 30 Hz, 6=at 50 Hz, 7=at 59.94 Hz, 8=at 60 Hz, 9=at 100 Hz, 10=at 120 Hz
Output Video Resolution (Max)
Auto-Scaler (scale up and down to any resolution —up to 4K@60Hz)1920x1080p @60Hz 4:4:4 8bit3840x2160p @60Hz 4:4:4 8bit4096x2160p @60Hz 4:4:4 8bit
COMMUNICATION & CONTROL
HDMI
HDMI 2.0 | HDCP 2.3 | EDID | CEC
RS-232
1x RS-232: 3-pin Phoenix Female | Video-Wall Processor ControlRoutable RS-232 Device Control | Telnet commands supported
Ethernet
1x LAN: 8-pin RJ-45 Female | Web UI | Video-Wall Control and Ethernet
POWER
Power Supply
DC 12V/3A
ENVIRONMENTAL
Operating Temperature
0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature
-20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
DIMENSIONS & WEIGHT
Dimensions
42mm/1.65in x 215mm/8.46in x 140.2mm/5.52in
REGULATORY
Supported Standards
DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020
