Cabinet speakers

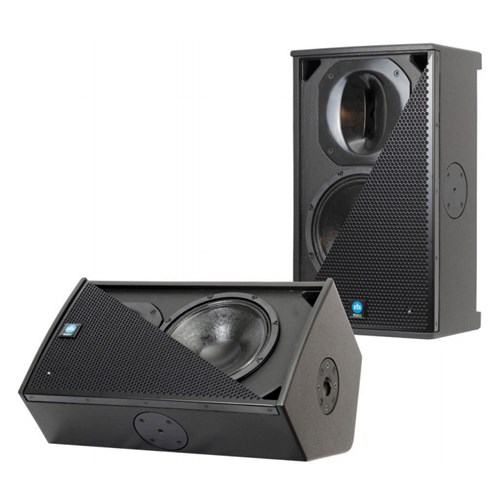

10 Powered+Dsp+Dante P2-10-RD Renkus Heinz

Product Code: RH-P2-10-RD

Renkus Heinz
RRP $12,599.00
Unit of Measure


5 Year
Technical Specifications
Brands Renkus Heinz
Series P Series
Size 10"
  • Details
  • Downloads
  • Where to Buy
  • Ordering


The P2-10 offers the sonic and performance advantages of a Complex Conic horn in a multi-angle cabinet that maximizes the utility of the loudspeaker. The rotatable Complex Conic horn insures that, whatever the cabinet orientation, the smooth consistent directivity matches the needs of the user. And the horn is ideally sized for consistent directivity through the low-high crossover as well. Only Renkus-Heinz can combine this level of performance, fidelity and power in such a compact, easy to install or transport loudspeaker.

Technical Data

  • Frequency Response: 60 Hz. to 20 kHz. (+ or - 3 dB)
  • Sensitivity: 1.0 volt for rated output, analog
  • Maximum Peak SPL: 130 dB-SPL@1 watt/1 meter
  • Dispersion: 90 h x 60 v (Optional 120 h x 60 v)
  • Crossover Frequency: 1.8 kHz, active electronic
  • Enclosure: 3/4 in./19 mm Lite Ply plywood
  • Grille: 16 GA powder coated, plated steel
  • Finish: Black (RAL9010) or White (RAL9011) paint, standard. Custom colors optional.
  • Mounting: 35 mm tripod socket, Optional 10 mm U-Bracket Points. UBRKT/P210
  • Weight: 40 lbs/18.2 kg
  • Dimensions: 324 mm w x 567 mm h x 324 mm d

SA650 Amplifier Specifications

  • Audio Connections:
    • 2 x XLR-3, In & Loop-out, Analog and AES
    • 2 x RJ45 Dante Primary & Secondary Ethernet
  • Maximum Input Level: +22 dBu, Analog, 0 dBFS digital
  • Network Connections: 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
  • User DSP: Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
  • Software: RHAON II
  • Latency: 6.25 ms + Dante transport latency
  • Power Output: LF= 500 watts, @ 8 ohms / HF = 250 watts @ 4 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
  • Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
  • Power Consumption: Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
  • Power Connector: Neutrik powerCON TRUE-1
  • Temprature Limits: Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
