Cabinet speakers

2X8 2-Way Full Range Powered CA82-A Renkus Heinz

Product Code: RH-CA82-A

Brand
Renkus Heinz
$5,199.00 inc GST
RRP $5,199.00

Out of Stock
Increase value Decrease value
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Renkus Heinz
Series C Series
Size 2 x 8"
  • Details
  • Downloads
  • Where to Buy
  • Ordering

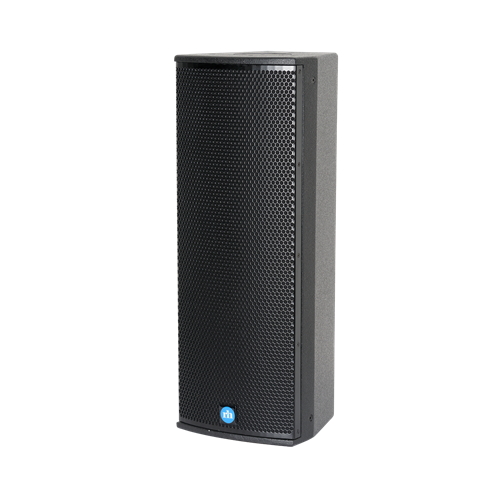

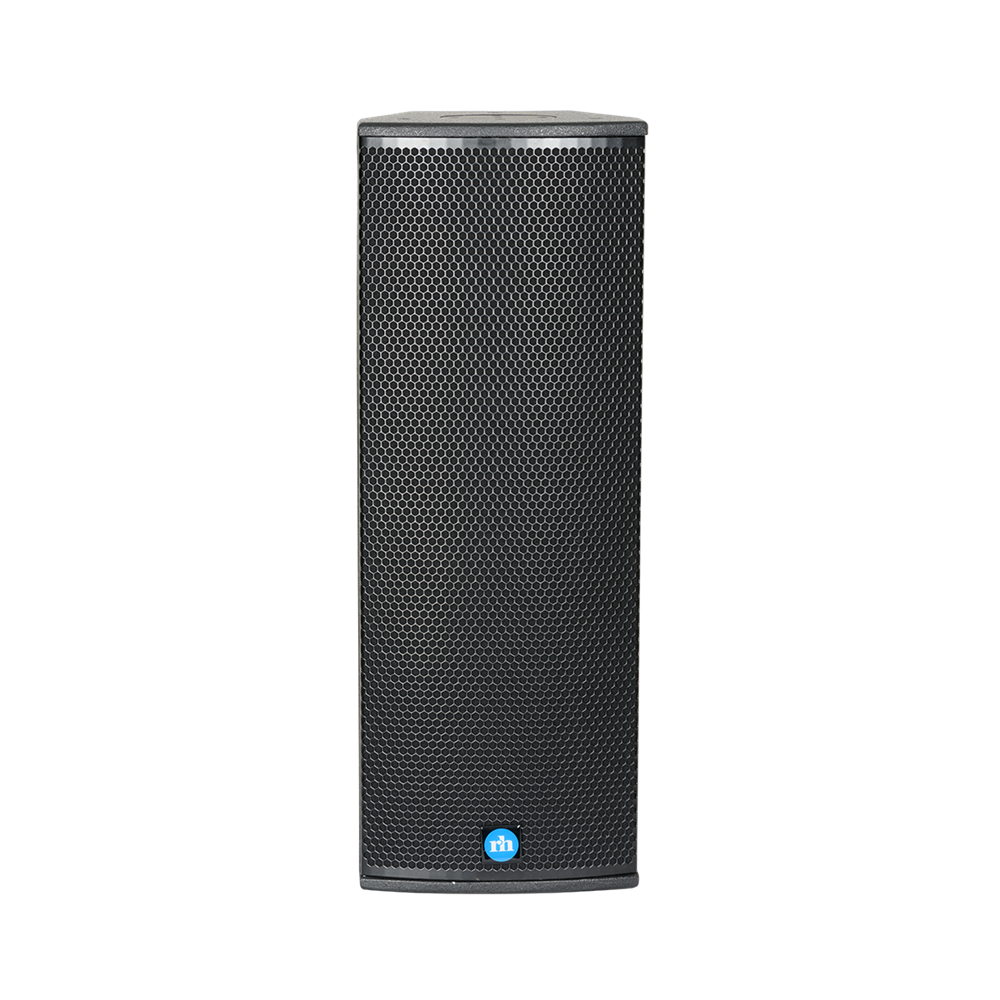

C82-A

2-Way, Full Range 2x8" LF, 1x1" HF Self-Powered Analog, SA625-A Amp Module

Two-Way Complex Conic Loudspeaker System

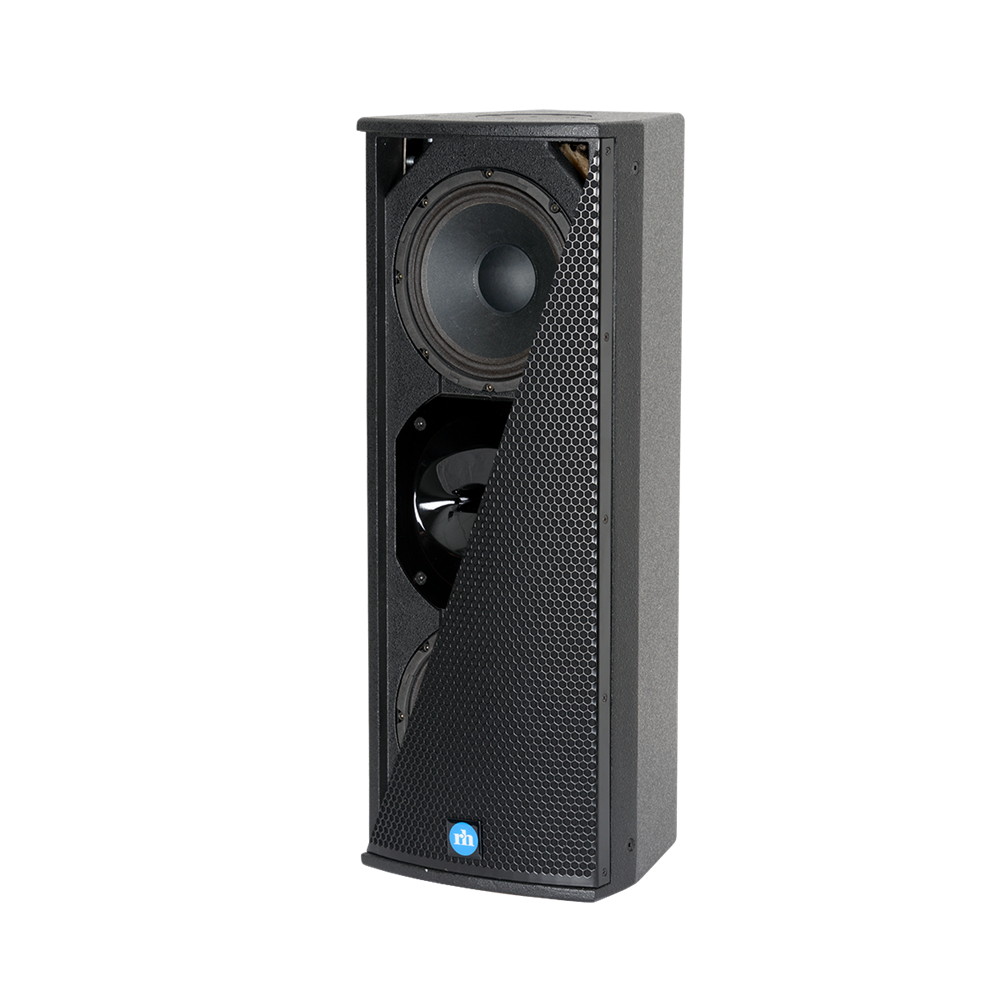

The C82 features dual 8-inch Heavy-Duty LF drivers with carbon fiber cones and a 1-inch Extended Range Titanium HF Driver.


Key Features

  • Miniaturized Design
    Outstanding, full-range 90 Hz to 20 kHz performance in a extremely compact, space-saving design.
  • Exclusive Complex Conic Design
    Complex Conic Horn provides superior pattern control with low distortion.
  • Coverage Pattern
    Complex Conic Horn provides smooth 120º x 60º coverage.
  • 1-inch Extended Range Titanium HF Driver
    Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
  • Dual Heavy-Duty 8-inch Woofers
    With carbon fiber cones easily handles 500 Watts of program power.
  • Built-in Crossover
    Eliminates need for a separate electronic crossover and bi-amplification.

Applications

  • Virtually any application where size is a critical issue and high output and outstanding sonic performance is required.
  • Ideal for many side and front fill applications; mounts inconspicuously in walls or ceilings, under and
    over balconies, etc.
  • Foreground music systems in shopping malls, retail stores, offices, etc.
  • Multi-channel playback systems in dance clubs (with optional subwoofers), compact floor monitors, cue loudspeakers for live music, etc.

Technical Information

  • Sensitivity:  99 dB (1W/1m)
  • Max SPL:  126 dB Peak
  • Dispersion:  120° x 60°
  • Freq. Response:  ± 3 dB, 90 Hz to 20 kHz
  • HF Driver:  1" Titanium driver, model SSD1445-16; 20 W AES
  • LF Driver: Dual 8" woofer, model SSL8-20; 1" VC; 125 W AES @ 16 Ohms
  • Power Rating:  See SA625 Amplifier
  • Enclosure: Poplar Ply, perforated metal grille
  • Connectors:  See SA625 Amplifier
  • Finish: Black or White Paint
  • Hardware:
    • 12-point Universal Mounting Hardware (Metric M6 threads)
    • M10 U-bracket attachment points
  • Dimensions:
    • 28-1/2" H x 10-5/16" W x 10-1/2" D
    • 724 mm H x 262 mm W x 267 mm D
  • Weight: 34 Lbs / 15.4 kg, Net

SA625 Amplifier Specifications

  • Audio Connections:  2 x XLR-3, In & Loop-out, Analog
  • Maximum Input Level: +22 dBu, Analog
  • Latency: 6.25 ms
  • Power Output: LF= 500 watts, @ 8 ohms / HF = 250 watts @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
  • Mains Voltage: 100-240 volts, 50/60 Hz auto-switching
  • Power Consumption: Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
  • Power Connector:  Neutrik powerCON TRUE-1
  • Temprature Limits:  Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
