Speakers

8 2-Way Full Range Powered CA81-A Renkus Heinz

Product Code: RH-CA81-A

Brand
Renkus Heinz
RRP $5,400.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
Technical Specifications
Brands Renkus Heinz
Product Category Speakers
Series C Series
Size 8"
Speaker Type Stage / Stadium
  • Details
  • Downloads
  • Where to Buy
  • Ordering

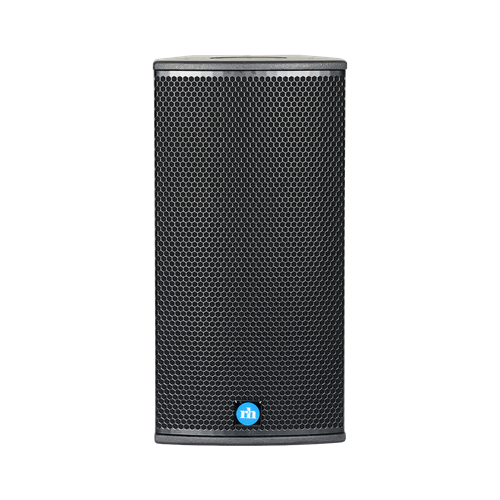

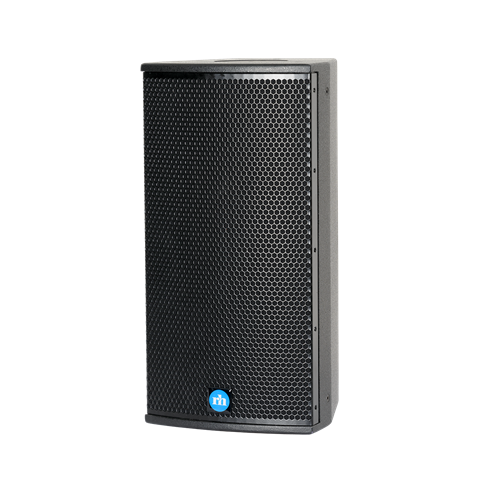

Renkus Heinz CA81-A


2-Way, Full Range 8" LF, 1" HF Self-Powered Analog, SA625-A Amp Module

C81

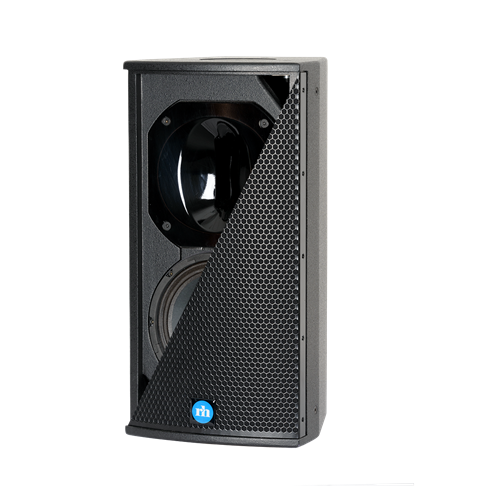

8-inch Heavy Duty Woofer + 1-inch titanium HF driver
Sound that makes performances and audiences truly come alive doesn't come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The C81 features an 8-inch heavy duty woofer and a 1-inch titanium HF driver.


Key Features

  • High Volume Output, Small Enclosures
    70 Hz to 20 kHz ±3 dB: Outstanding, full-range performance in an extremely compact, space-saving design.
  • Exclusive 120° x 60° Complex Conic Design
    Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
  • 1-inch Extended Range Titanium HF Driver
    Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
  • Heavy-Duty 8-inch Woofer
    Easily handles 250 Watts of program power.

Applications

  • Virtually any application where size is a critical issue and outstanding sonic performance is required.

Permanent Installations

  • Ideal for fills, delays, distributed and playback systems Churches, schools, sports venues, board rooms, malls, transportation venues, retail environments

Portable Applications

  • Ideal solution for portable, compact, full-range sound reinforcement requirements.
    Performing artists, rental A/V, schools, churches, etc.

Specifications


Connectors:2 x XLR-3, In & Loop-out
Sensitivity:1.0 volt for rated output, analog
Power Handling:See SA625 amplifier specs below
Crossover Frequency:2.2 kHz active electronic
Weight:25 lbs/11.3 kg
Frequency Response:90 Hz to 20 kHz (+/- 3dB)
Max. SPL:123 dB (peak, whole space)
Dispersion120° horizontal x 60° vertical, Rotatable Complex Conic Horn
Enclosure:11 ply birch plywood
Grille:16 GA powder-coated, plated steel
Transducers:Woofer: SSL8-20; High Frequency Driver: SSD1445-16; Replacement HF Diaphragm CD1445-16
Finish:Black (RAL9010) or White (RAL9011) paint
Mounting:12 x M6 UMH points; 2 x M10 u-bracket nutplate. Optional: UBRKT/CT81B (black), UBRKT/CT81W (white)
Dimensions:262 mm w x 533 mm h x 267 mm d
SA625 Amplifier Specifications
Audio Connections:2 x XLR-3, In & Loop-out, Analog
Latency:6.25 ms
User DSP:None
Software:None
Max. Input Level:+22 dBu, Analog
Network Connections:None
Power Output:LF= 250 watts, @ 16 ohms / HF = 125 watts @ 16 ohms. Multi-band peak and thermal limiting on both channels protects the drivers.
Neutrik NL4 provides processed, loop-out to second CX81. (Looped-to loudspeaker must be in bi-amp mode.)
Mains Voltage:100-240 volts, 50/60 Hz auto-switching
Power Consumption:Idle: 200 mW. 1/8 power: 120 W (onset of limiting) 1/3 power: 240 W (hard limiting)
Power Connector:Neutrik powerCON TRUE-1
Temperature LimitsMax.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
Note: All analog inputs and outputs comply with AES Standard 48-2005 on interconnecting, grounding and shielding
