Cloudplate T7 Quiet Rack Cooling Fan System, 2RU, Exhaust

Product Code: AI-CP2LKT

Brand
AC Infinity
$399.00 inc GST
RRP $399.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Kit Components
Code
Item
Qty
AI-AIRCLDPOWER
12Volt 3.0 Amp Power pack Cloud Aircom AC Infinity
1.0
AI-CP2L
Please Use AI-CP2LKT 80mm fans 6200 LPM EXHAUST AC Inifinity
1.0
Technical Specifications
Brands AC Infinity
Cooler type Rack
  • Details
  • Downloads
  • Where to Buy
  • Ordering

CLOUDPLATE T7, QUIET RACK COOLING FAN SYSTEM 2U, EXHAUST

Product Features

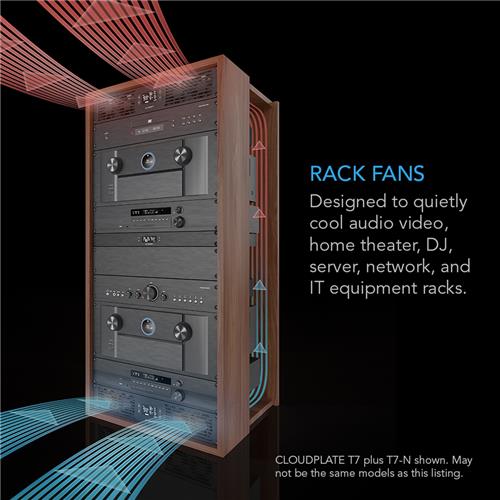

  • An intelligent fan system designed for cooling audio video, DJ, server, network, and IT equipment racks.
  • Protects rack-mount equipment from overheating, performance issues, and shortened lifespans.
  • Programmable thermostat controller with automated speed control, alarm warnings, and backup memory.
  • Premium anodized aluminum construction with CNC-machined detailing for a professional appearance.
  • Size: 2U Rack Space | Design: Exhaust | Airflow: 50 to 220 CFM | Noise: 10 to 36 dBA | Technical Data Tab

Product Details
An intelligent cooling fan system designed to be mounted onto a wide range of 19-inch racks requiring quiet or high airflow cooling. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. The LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory. The system is housed in a solid aluminum construction that takes up two rack units of space (2U). Each aluminum frame is anodized with a light-brush finish, then the corners CNC-machined and edges chamfered for a high-end professional appearance. This model holds three custom-engineered dual-ball bearing fans rated at 67,000 hours, and certified by CE, UL, TUV, and RoHS. The fans are set to exhaust out heated air and should be positioned near the top of the rack; an intake version of this model is available, sold separately. This complete kit includes the 2U fan unit, corded 6-ft thermal probe, user’s manual, rack mount screws, cage nuts, and corded 6-ft power supply.

Intelligent Cooling
Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan’s speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings. Behind the unit is an expansion port that can control another CLOUDPLATE unit or an AC Infinity rack roof dual-fan kit.

Performance and Applications
This 2U rack cooling system features programmable fan speed control, enabling it to work for a wide range of rack mount applications. With a noise level that can reach 10 dBA, the fan system can be used for environments where low or minimal noise is required such as home theater, studio, DJ, and audio video racks. A max airflow rating of 220 CFM will provide sufficient cooling to server, network, IT and equipment racks requiring high airflow.

Specifications

Technical Data


Product Identification
Manufacturer

  • AC Infinity Inc.

Product Name

  • CLOUDPLATE T7

Product Model

  • AI-CP2L

UPC Code

  • 854759004501

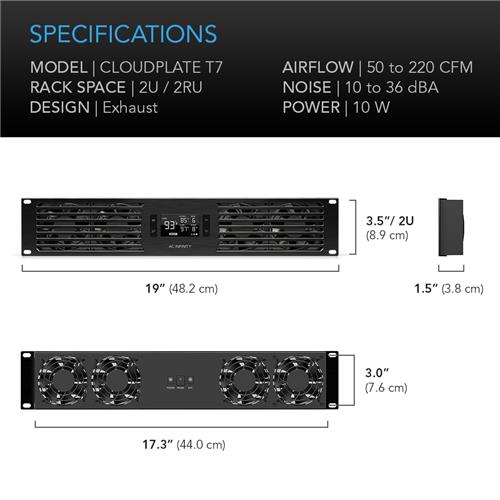

Product and Mounting Dimensions

Total Dimensions

  • 19.0 x 3.5 x 1.5 in. (48.3 x 8.9 x 3.8 cm)

Rack Mount Size

  • Two Rack Units (2U)

Screw Hole Size

  • Ø .24 x 0.35 in. (Ø 6.1 x 9.0 mm) Obround

Hole to Hole Distance

  • 18.2 x 3.0 in. (46.4 x 7.6 cm)

Display Size

  • 2.25 x 1.25 in. (4.7 x 3.2 cm)

Probe Length

  • 72 in. (6 feet)

Cord Length

  • 72 in. (6 feet)

Product Performance and Technical Specs

Design

  • Exhaust

Total Airflow

  • 50 to 220 CFM

Total Noise

  • 10 to 36 dBA

Static Pressure

  • 2.56 mm-H2O

Operating Voltage

  • 12V DC

Power

  • 10 W

Current

  • 0.83 A

Wall Adapter Input

  • 100 to 240V AC

Operating Humidity

  • 35 to 85% RH

Operating Temperature

  • 14 to 230°F

Fan Bearings

  • Dual Ball

L10 Life Expectancy

  • 67,000 Hours

Fan Quality Approvals

  • UL, CE, TUV, RoHS
