Cooling

Airplate S7 2x120 mm Cabinet With Power Pack AC Infinity

Product Code: AI-CFD120BA/KT

Brand
AC Infinity
$119.00 inc GST
Out of Stock
Increase value Decrease value
Unit of Measure
EACH
1 Year
Kit Components
Code
Item
Qty
AI-CFD120BA
Airplate S7 2x120 mm Cabinet Cooler 104 CFN @ 19 dBA AC Infinity
1.0
AI-USBPP
2.1 Amp USB Powerpack
1.0
Technical Specifications
Brands AC Infinity
Cooler type Cabinet
  • Details
  • Downloads
  • Where to Buy
  • Ordering

AIRPLATE S7, HOME THEATRE AND AV QUIET CABINET COOLING FAN SYSTEM, 12 INCH

  • An ultra-quiet fan system designed for cooling cabinets that requires minimal noise.
  • Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
  • Contains a CNC machined aluminum frame with a modern brushed black finish.
  • Powered by wall outlet or USB port, included Turbo Adapter increases performance by 25%.
  • Dimensions: 11.7 x 6.1 x 1.3 in | Total Airflow: 104 CFM | Total Noise: 19 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Features a speed controller and 6 foot power cord. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE, UL, TUV, and RoHS. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through an USB port or standard wall outlet.

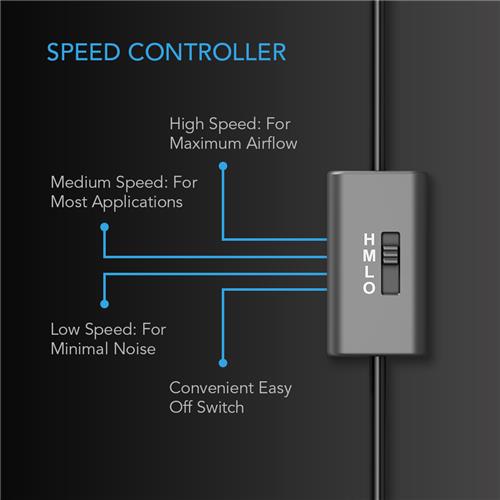

SPEED CONTROLLER AND BOOST ADAPTER

The in-line multi-speed controller with power switch allows setting the fan’s speed to optimal noise and airflow levels for various environments. The included Boost Adapter not only allows the fan to be powered through a wall outlet, but increases its performance by up to 25%.

CONNECTING ADDITIONAL UNITS

For cabinets that requires more airflow, each unit can be connected to additional AIRPLATE S and T series cabinet fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S7 contains two fans and AIRPLATE S9 contains three fans. All setups with more than four daisy-chained fans must have their inline speed controller set to high to prevent overload, e.g. two AIRPLATE S9 units daisy-chained together.

APPLICATIONS

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.

 Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    AIRPLATE S7
   Product Model    AI-CFD120BA
   UPC Code    854759004068

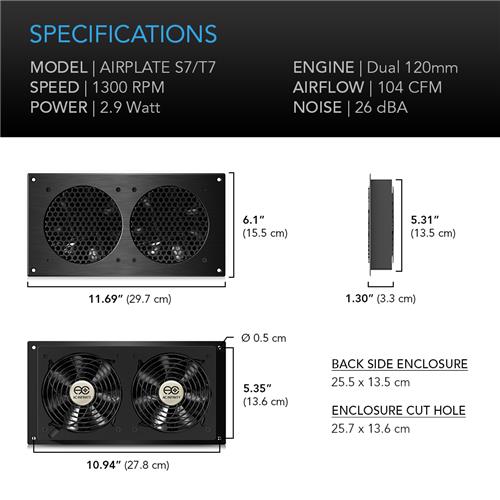

   Product and Mounting Dimensions - Fan Unit
   Total Dimensions    11.7 x 6.1 x 1.3 in. (29.7 x 15.5 x 3.3 cm)
   Backside Enclosure Dimensions    10.04 x 5.31 in. (25.5 x 13.5 cm)
   Required Mounting Hole    10.12 x 5.35 in. (25.7 x 13.6 cm)
   Hole to Hole Distance    10.94 x 5.35 in. (27.8 x 13.6 cm)
   Screw Hole Size    Ø 0.197 in. (Ø 0.5 cm)
   Cord Length    72 in. (6 feet)
   Mounting Template    Installation Manual PDF
   Product Performance and Technical Specs
   Total Airflow    104 CFM
   Total Noise    19 dBA
   Static Pressure    1 mm-H2O
   Operating Voltage    3 to 7V DC
   Power    2.9 W
   Current    0.58 A
   Wall Adapter Input    100 to 240V AC
   Operating Humidity    35 to 85% RH
   Operating Temperature    14 to 230°F
   Fan Bearings    Dual Ball
   L10 Life Expectency    67,000 Hours
   Fan Quality Approvals    UL, CE, TUV, RoHS
