  • Rack Roof Fan - Twin Fans 2 x 120mm fans 5663LPM @32dBA AC Infinity With P/Pack

Rack Roof Fan - Twin Fans 2 x 120mm fans 5663LPM @32dBA AC Infinity With P/Pack

Product Code: AI-RRF7KT

Brand
AC Infinity
$229.00 inc GST
RRP $229.00

In Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



Unspecified
Kit Components
Code
Item
Qty
AI-AIRCLDPOWER
12Volt 3.0 Amp Power pack Cloud Aircom AC Infinity
1.0
AI-RRF7
Please use AI-RRF7KT Dual Fans + Controller AC Infinity
1.0
Technical Specifications
Brands AC Infinity
Cooler type Rack
  • Details
  • Downloads
  • Where to Buy
  • Ordering

AC-RRF7 - Dual Fans with Speed Controller


RACK ROOF FAN KIT, DUAL COOLING-FANS WITH SPEED CONTROLLER

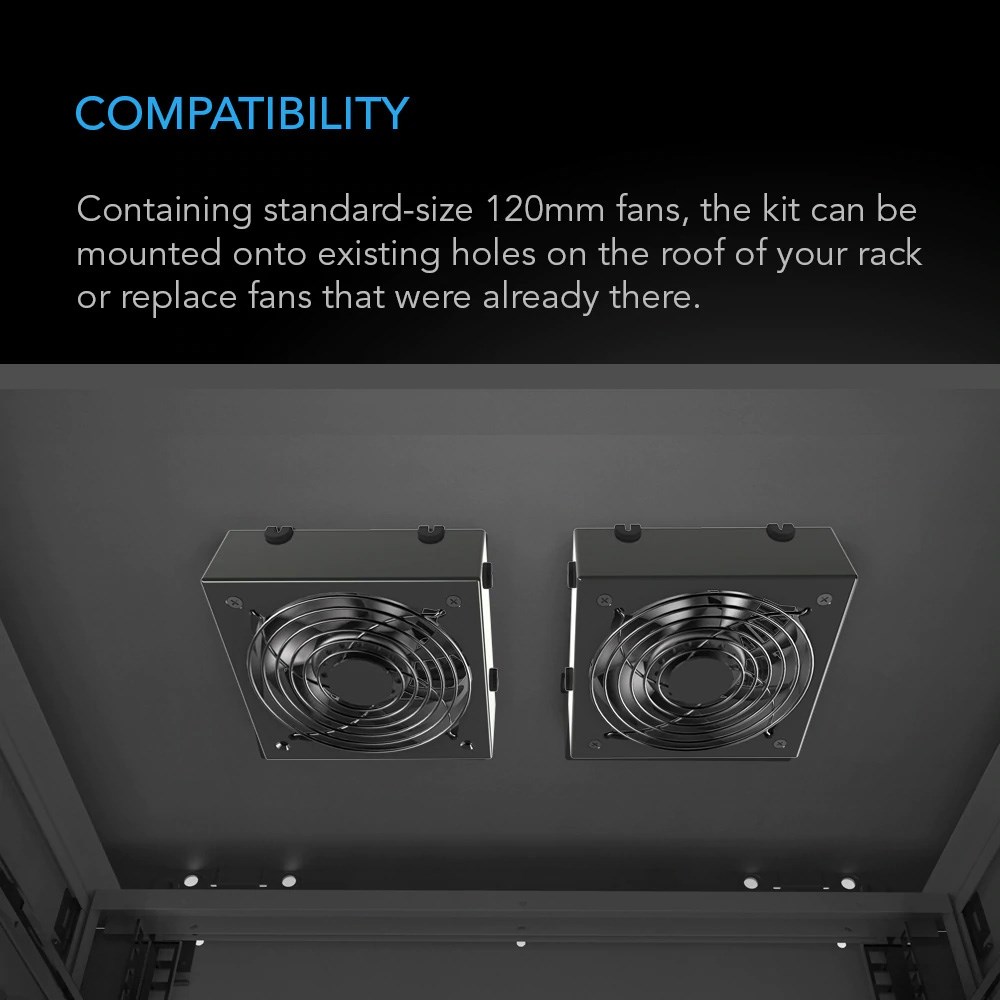

  • A quiet fan kit designed for standard 19” racks, to be mounted on the roof or to replace existing fans.
  • Features a speed controller utilizing PWM which can control the fan's speed without generating noise.
  • Compatible with CLOUDPLATE series rack fans and can be linked to share the same programming.
  • Heavy-Duty steel construction with spiral fan guards, mounting hardware, and power adapter.
  • Size: Standard 120mm Rack Fans | Fans: 2 | Airflow 200 CFM | Noise: 26 dBA | Bearings: Dual Ball

PRODUCT DETAILS
A quiet dual-fan kit designed to be mounted onto the roof of standard 19-inch racks to provide cooling. Containing standard 120mm fans, it can also replace existing fans that may been included with your rack. Maintaining an optimal temperature for rack-mount equipment prevents overheating, ensures constant performance, and extends their lifespan. Features an inline speed controller utilizing PWM-technology. The fans are housed in heavy-duty cold rolled steel with spiral fan guards. Fans contain dual-ball bearings rated at 67,000 hours, and are certified by CE and RoHS. This complete kit includes two fans, an inline speed controller, rack-roof mounting screws, corded 6-ft power adapter, and user’s manual.

PRECISE SPEED CONTROLLER
The inline speed controller enables you to set the duct fan’s speed to optimal noise and airflow levels for various environments. Unlike common AC-powered duct fans that suppresses voltage to control fan speeds, this duct fan features a DC-motor that is precisely controlled using PWM (Pulse Width Modulation). This technology enables the fan's motor to be able to run smoothly at extremely low RPM speeds without generating motor noises and heat as seen on variable voltage controllers. Eight speed options are available with power switch, and backup memory.

PERFORMANCE AND APPLICATIONS
This rack roof fan kit contains standard 120mm fans, enabling it to be compatible with most standard 19” racks. With a noise level that can reach 12 dBA, the fan system can be used for environments where low or minimal noise is required such as home theater, studio, DJ, and audio video racks. A max airflow rating of 200 CFM will provide sufficient cooling to server, network, IT and equipment racks requiring high airflow.

Product Identification
Manufacturer AC Infinity Inc.
Product Name RACK ROOF FAN KIT
Product Model AC-RRF7
UPC Code 819137020061
Product and Mounting Dimensions - Per Fan
Total Dimensions 5.2 x 5.2 x 1.7 in. (13.2 x 13.2 x 4.2 cm)
Fan Dimensions 4.7 x 4.7 x 1.5 in. (12.0 x 12.0 x 3.8 cm)
Screw Hole Size 0.17 in. (Ø 0.4 cm)
Hole to Hole Distance 4.13 x 4.13 in. (10.5 x 10.5 cm)
Fan-to-Fan Cord Length 10 in. (0.8 feet)
Power Cord Length 72 in. (6 feet)
Product and Mounting Dimensions - Controller
Total Dimensions 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Required Mounting Area 2.95 x 0.51 in. (3.6 x 1.3 cm)
Hole to Hole Distance 2.87in. (7.3 cm)
Screw Hole Size 0.157 in. (Ø 0.4 cm)
Cord Length 72 in. (6 feet)
Product Performance and Technical Specs
Design Rack Roof Top-Exhaust
Number of Fans 2
Total Airflow 200 CFM
Total Noise 26 dBA
Static Pressure 5.5 mm-H2O
Operating Voltage 12V DC
Power 20 W
Current 1.6 A
Wall Adapter Input 100 to 240V AC
Operating Humidity 35 to 85% RH
Operating Temperature 14 to 230°F
Fan Bearings Dual Ball
L10 Life Expectency 67,000 Hours
Fan Quality Approvals CE, RoHS
