215 x 112 mm AP5 Frame / Grill / Vent White AC Infinity

Product Code: AI-MFW5

Brand
AC Infinity
$39.00 inc GST
RRP $39.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands AC Infinity
Accessory Type Grill
Cooler type Cabinet
  • Details
  • Downloads
  • Where to Buy
  • Ordering

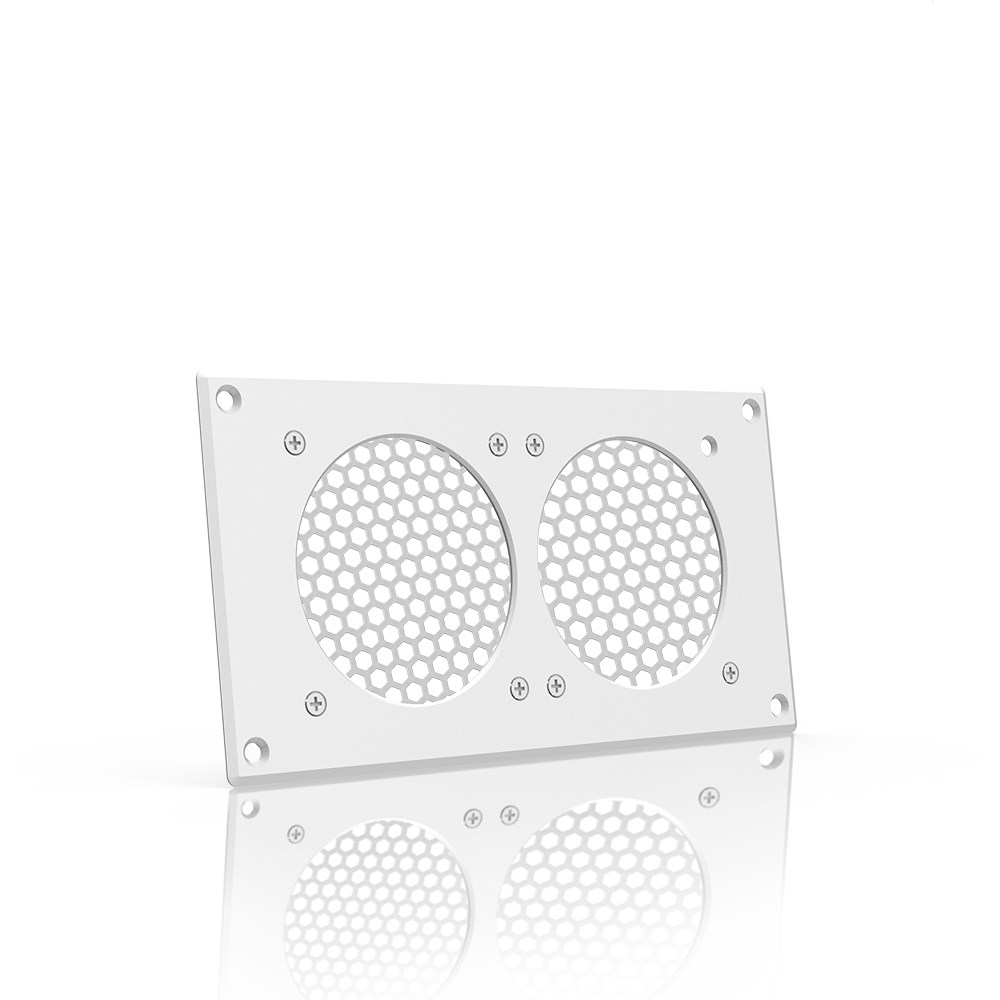

CABINET VENTILATION GRILL WHITE, 8 INCH

 Product Features

  • Designed to be installed into cabinets or walls to help increase ventilation
  • Is the exact same dimensions as AIRPLATE S5; and can be used to replace their black mounting frames.
  • Includes optional hardware to secure a 80mm fan onto the grill, and mount it into your cabinet or wall
  • Features a CNC machined aluminum frame, honeycomb grill insert, and flat screw heads; all painted matte white.
  • Kit includes (4) wood mounting screws, (4) machine mounting screws with nuts, (8) fan mounting screws with nuts, and (2) 80mm spiral fan guard.

Product Description
The Cabinet Ventilation Grill is a 8.5 by 4.4 inch metal grill that can be installed into cabinets and walls to help increase ventilation. It is the same exact dimensions as AIRPLATE S5 and can be used to replace their black mounting frames by using a a phillips head screwdriver. The frames can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes two optional 80mm fan guards and hardware to secure two 80mm fans, a popular size for computers and DIY applications, onto the grill. To mount your fan and grill into your cabinet or wall, you would need to cut a square hole approximately 7.00 by 3.82 inches. Features a CNC machined aluminum frame, pre-secured to a steel honeycomb grill, and four flat-head screws, all painted matte white. Information on the additional included hardware can be found below.

Hardware
Includes four wood screws and four machine screws with nuts to mount the ventilation grill onto a cabinet or wall. Also includes eight 1.25-inch long machine screws with nuts to mount two 80 mm fans with the included two 80mm fan guards onto the ventilation grill. All screw heads are painted matte white to match the mounting frame.



Specifications

Technical Data

Product Identification

Manufacturer

  • AC Infinity Inc.

Product Name

  • VENT GRILLE WHITE 5

Product Model

  • AI-MFW5

UPC Code

  • 819137020115

Product and Mounting Dimensions

Total Dimensions

  • 8.46 x 4.41 x 0.12 in. (21.5 x 11.2 x 0.3 cm)

Required Mounting Hole

  • 7.00 x 3.82 in. (17.8 x 9.7 cm)

Hole to Hole Distance

  • 6.93 x 3.74 in. (17.6 x 9.5 cm)

Screw Hole Size

  • Ø 0.197 in. (Ø 0.5 cm)

Product Performance and Technical Specs

Number of Mountable Fans

  • 2

Mountable Fan Size

  • 3.15 x 3.15 in. (80 x 80 mm)

Fan Guard Size

  • 3.15 x 3.15 in. (80 x 80 mm)
