620 Series 8 Port Switch AN-620-SW-R-8-POE Araknis

Product Code: AR-AN-620SW-R8P

RRP $2,639.00
Quantity In Cart:
Unit of Measure


Technical Specifications
Brands Araknis
Product type Network switches
  • Details
  • Downloads
  • Where to Buy
  • Ordering

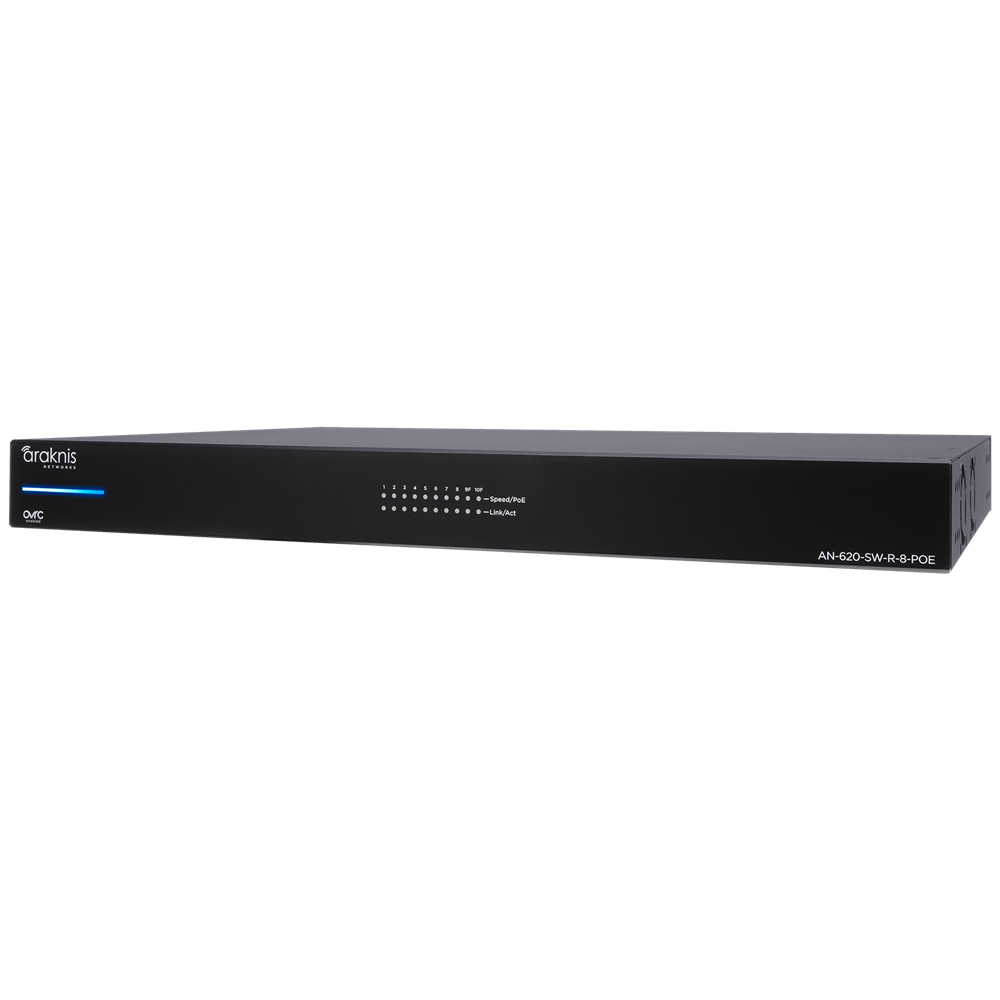

Araknis Networks® 620-Series L3 Managed Multi-Gigabit PoE++ Switch

Araknis 620 series switches offer 2.5G throughput, unlocking high speeds offered by many ISPs, while fully supporting bandwidth requirements for Wi-Fi 6. Each PoE++ Type 3 port can deliver up to 60W of power. With its Layer 3 Lite functionality, the 620 series can make the network more efficient by locally routing traffic instead of relying on the router. Plus, the 620 is supported by Snap One’s OvrC remote management platform. OvrC saves you time on every deployment and enables remote management for improved service, post-install.

  • Rear Ports
  • 2.5G
  • PoE++
  • SFP
  • Multi Speed Fans

Fully Managed - Layer 3 Lite
This switch supports Layer 3 Lite and full Layer 2 functionality for more complex network deployments. Layer 3 Lite makes the network more efficient by leveraging static and inter-VLAN routing to route traffic locally through the switch rather than fully relying on the router.

2.5G Throughput
High-speed applications like Wi-Fi 6 and >1G ISP services are easily supported with 2.5G throughput on every port.

Full PoE++ Up to 60W
Fully PoE++ Type 3 capable ports support up to 60W each, and up to 30W each simultaneously.

Better With OvrC
OvrC is a free remote management platform created by Snap One for professionals to remotely manage, configure, and troubleshoot devices on the network.Araknis works with OvrC to extend the switch configuration and management to the cloud. Cloud management enables faster deployments and remote troubleshooting without a truck roll.

Multi-Speed Fans
The honeycomb venting solution and temperature sensor ensure efficient temperature controls. The sensor drives the speed of the fans based on load and environment, reducing fan noise for quieter operation.

Rack Mountable
Rack ears and 1U design make mounting the switch convenient and simple.


  • Form Factor: 1U Rackmount
  • Dimensions (W x H x D): 443 mm x 300 mm x 44 mm
  • Power Consumption:
    • 42.1W Maximum
    • 33.68W Typical
  • Line Voltage: 100-240V AC, 50/60Hz
  • Weight: 3.688kg (8.1lbs)
  • Ports: 8 x 100M/1G/2.5G BASE-T RJ45
  • SFP+ Ports: 2
  • Console Port Specs: 1 Micro USB
  • PoE Power Budget: 240W (4 Ports@60W)
  • QoS Features:
    • Ingress
    • ACL (L3/L4)
    • ACL (IPv4)
  • PoE Features:
    • Priority Control (per port)
    • Perpetual PoE
    • Fast PoE
    • Configurable Usage Threshhold
    • 802.3bt Type 3 compliant 60W
  • VLAN Features:
    • 802.1Q
    • Port Based
    • MAC Based
  • Management Features:
    • OvrC Management
    • Web/Telnet/CLI/SNMP
    • Full RESTful API
    • Dual Firmware Image
    • Editable Configuration File (CLI)
    • SSLv3/TLS1.2/SSHv2(SHA2)
    • Persistent Logging
  • Temperature Range:
    • Operating: 0-50C
    • Typical: 50C
  • Operating Temperature: 0-50C
  • Humidity: 0-90% non-condensing
  • Certifications: FCC/IC/CE/AU/cTUVus/IEC62368-1/ERP/RoHS
