Products

DPA Microphones

DPA d:vote™ CORE 4099 Mic, Loud SPL with Clamp Mount

Product Code: DP-4099-DC-1-101-CM

Brand
DPA Microphones
RRP $1,019.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands DPA Microphones
  • Details
  • Downloads
  • Where to Buy
  • Ordering

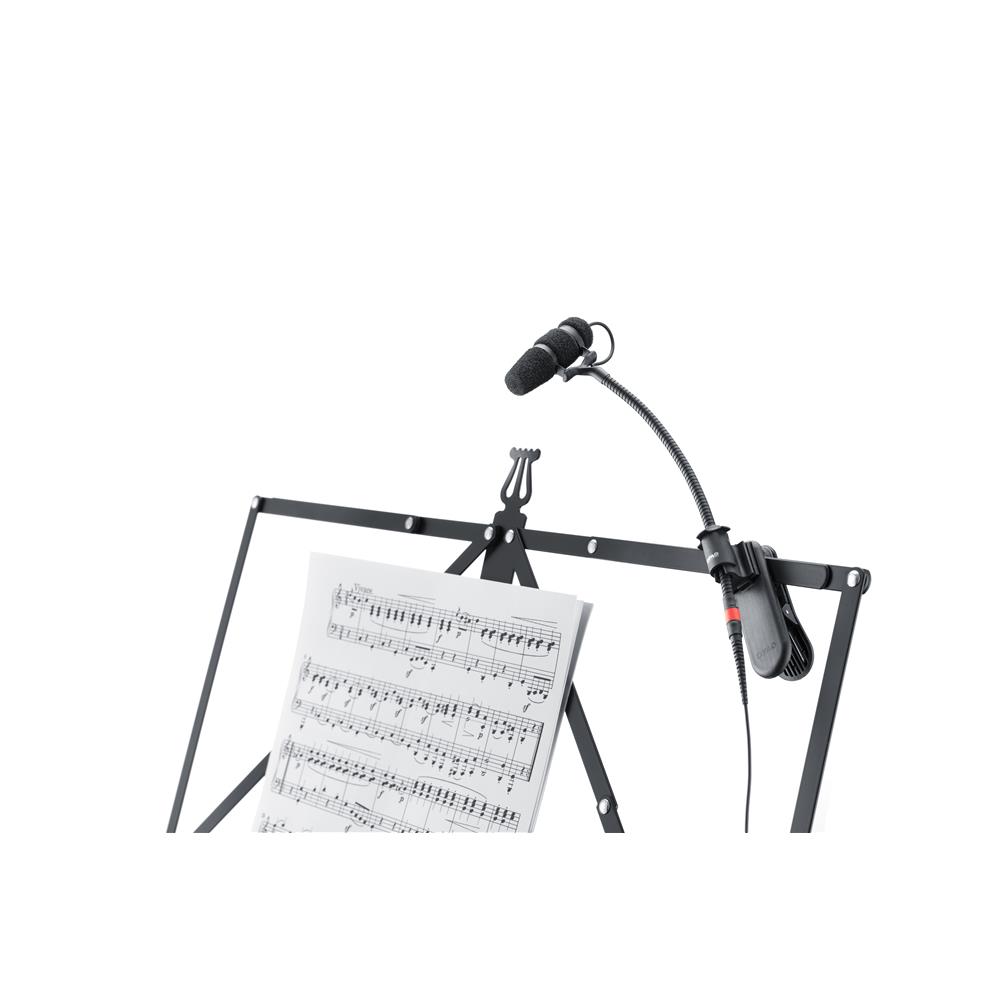

DPA d:vote 4099 for Clamp Mount The d:vote™ CORE 4099 for Loud SPL with a mount designed to be flexible, easy to use and quick to move. With a strong spring, the mount can be clamped onto many surfaces and instruments such as saxophones and brass instruments. Choose a d:vote™ CORE 4099CM Instrument Microphone with Clamp Mount (4099-DC-1-101-CM). Specifications Directional pattern Supercardioid Principle of operation Pressure gradient Cartridge type Pre-polarized condenser Frequency range 20 Hz - 20 kHz Frequency range, ± 2 dB, at 20 cm (7.9 in) 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz Sensitivity, nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A)) S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB(A) Total harmonic distortion (THD) < 1% up to 131 dB SPL peak Dynamic range Typ. 108 dB Max. SPL, peak before clipping 142 dB Output impedance From MicroDot: 30 - 40 Ω. From DAD4099/DAD6001-BC: 100 Ω Cable drive capability Up to 300 m (984 ft) with DAD4099 or DAD6001-BC XLR Adapter Output balance principle Signal balanced with DAD4099 or DAD6001-BC XLR Adapter Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD4099 or DAD6001-BC XLR Adapter Power supply (for full performance) Min. 5 V to max. 50 V through DPA adapter for wireless systems Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD4099 or DAD6001-BC XLR Adapter Connector MicroDot Colour Black Weight 27 g (0.95 oz) Microphone diameter 5.4 mm (0.21 in) Microphone length 45 mm (1.8 in) Cable length 1.8 m (5.9 ft) Cable diameter 1.6 mm (0.06 in) / 2.2 mm (0.09 in) Polarity +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099 or DAD6001-BC XLR adapter) Temperature range -40°C to 45°C (-40°F to 113°F) Relative humidity (RH) Up to 90% Gooseneck length 140 mm (5.5 in) Typical on & off-axis response of a d:vote 4099Typical directional characteristics of a d:vote 4099

Product Documents

No documents available
