Annuncicom 1000, Network Audio Encoder/Decoder. BAR20079076 BARIX

Product Code: BX-BAR20079076

RRP $2,295.00
Quantity In Cart:
Unit of Measure


2 Year
Technical Specifications
Brands Barix
Product type IP Paging and Intercom
  • Details
  • Downloads
  • Where to Buy
  • Ordering

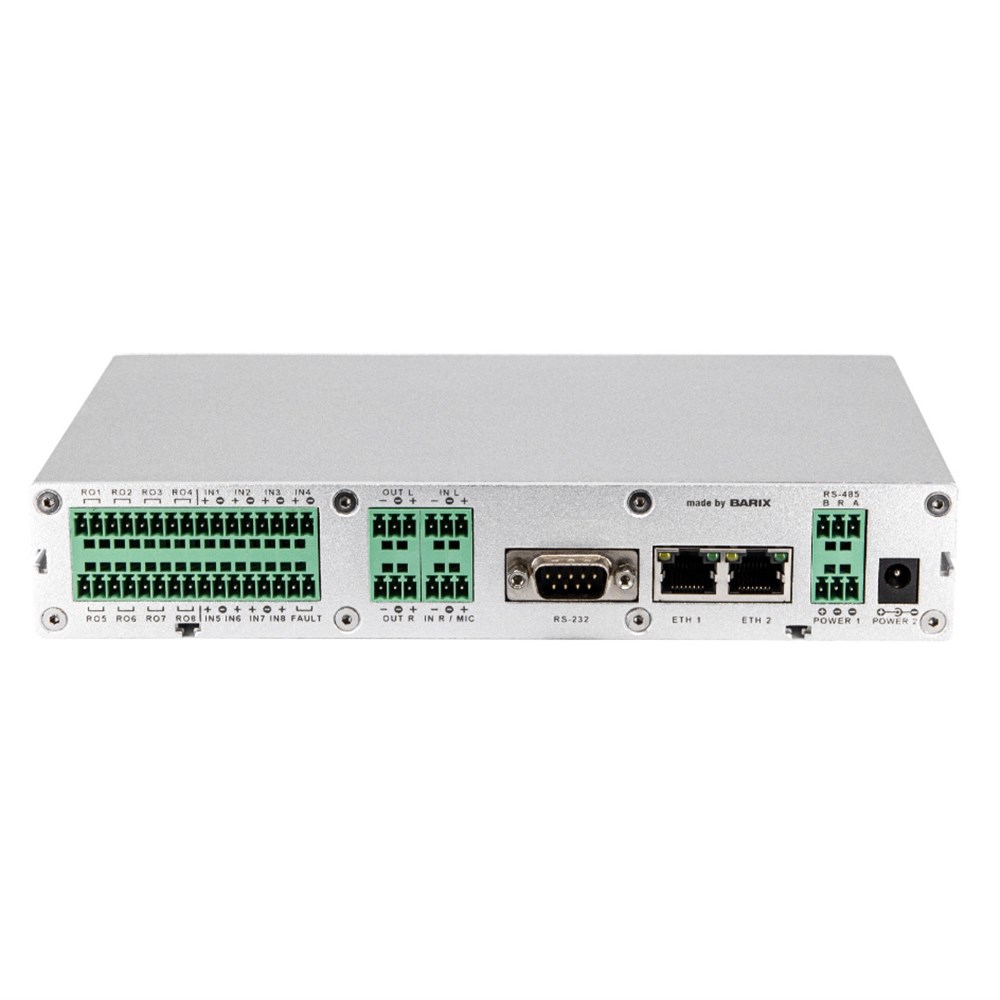

Professional Intercom / Paging device with supervised contact closures and relay outputs, 48V capable
Professional IP Paging and Intercom codec device for security applications. Balanced Audio interfaces, contact closure input supervision, output relays, redundant power and network connections, switchable microphone input.

  • Audio Formats
    MP3 encoding up to 192 kBit VBR, CBR*, decoding up to
    320 kBit (Stereo), G.711 (uLaw/aLaw @ 8 or 24 kHz), G.722* and PCM (16 bit @ 8 or 24 kHz)

  • Discrete Interfaces
    8 supervised Inputs, 8 Relays (dry contacts)
    1 Fault Relay output

  • Audio Interfaces
    Mic In (Balanced, Phantom power) or Balanced
    Balanced Stereo Line In, 18 kOhm impedance
    Input level software controllable
    Clippinglevel 3.5 dBu, 3.28 Vpp
    Frequency response (-3 dBFS) 20 .. 17000 Hz **
    Signal to Noise Ratio 88 dB, THD (-3 dBFS) < 0.1 %
    Stereo crosstalk -87 dB
    Balanced Stereo Line Out, 40 .. 60 Ohm impedance
    Output level software controllable
    Full scale output voltage 5.9 dBu, 4.33 Vpp
    Frequency response (-3 dBFS) 15 .. 21000 Hz **
    Signal to Noise Ratio 92 dB, THD (-3 dBFS) < 0.1 %
    Stereo crosstalk -66 dB
  • Serial Interfaces
    RS-232 DSub 9 pin male, 300..115200 Baud
    RS-485 screw terminal block, 300..115200 Baud

  • Control Interfaces
    web server for control and configuration

  • Network Interface
    RJ45 10/100 Mbit Ethernet (Auto), TCP/IP, UDP, RTP, SIP, DHCP, SNMP, AutoIP, SonicIP, IPzator

  • Misc
    Ten status LEDs, reset/factory default button
    Internal temperature sensor
  • Power inputs
    Two independent, level supervised inputs
    24 to 48 VDC ±20% (pos. or neg.), 8 Watt max.

  • Case
    Aluminum, 745 g, 8.5″ x 1.5″ x 4.92″ 216 mm x 38 mm x 125 mm

  • MTBF
    Min. 300 000h acc. to MIL217F at 25°C ambient temperature

* Hardware revision 2 only

** depeds on used codec, best results @48KHz PCM
