310 Series 16 Port Switch AN-310-SW-F-16 Araknis

Product Code: AR-AN-310SW-F16

Brand
Araknis
RRP $979.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
Technical Specifications
Brands Araknis
Product type Network switches
  • Details
  • Downloads
  • Where to Buy
  • Ordering

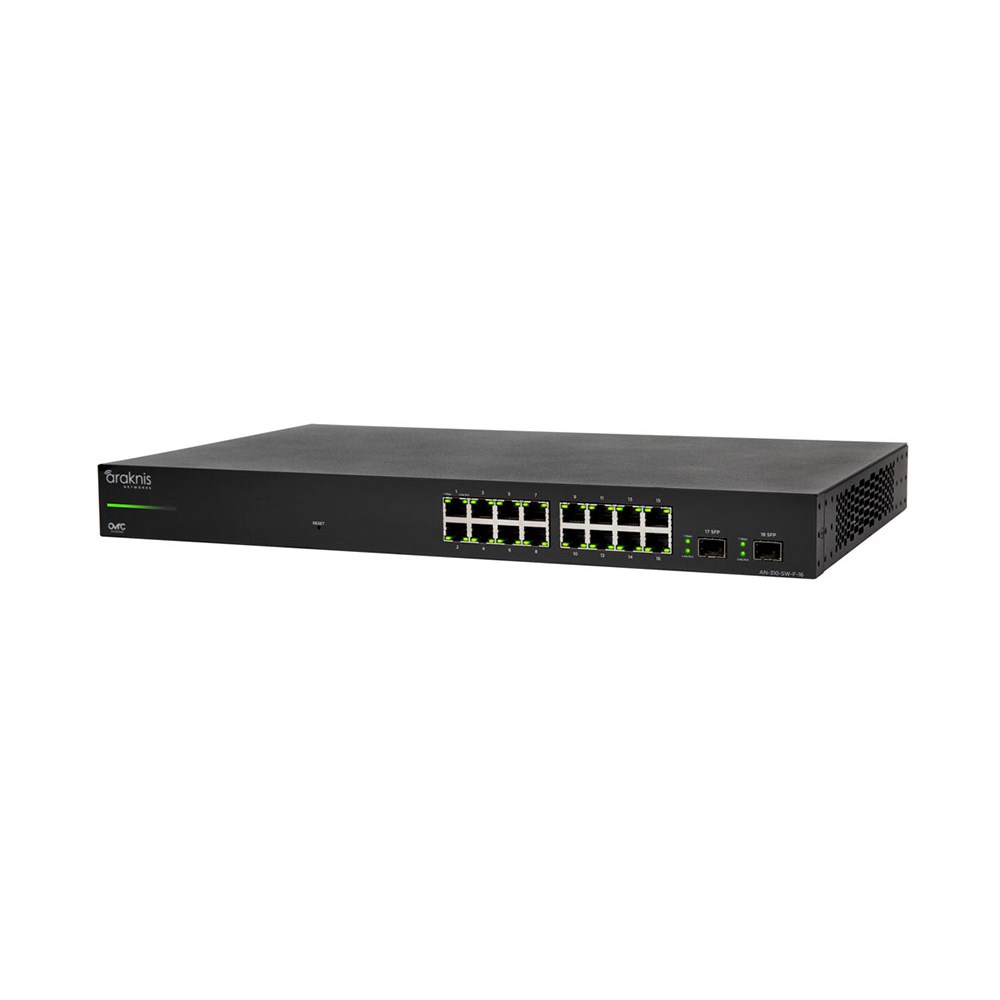

Araknis Networks® 310 Series L2 Managed Gigabit Switch with Front Ports

Get powerful, reliable connectivity for a wide range of network devices with our flagship series of switches. 1Gbps speed across all ports allows for powerful connectivity, while a user-friendly GUI and multiple mounting options ensures a quick and easy install. Plus, LEDs on the front and back of the device make it easy to see port status. And like all Araknis switches, you have remote management capability via OvrC. Simply put, this switch has it all.


  • Mounting Notice - The 8-port model of this switch ships with left-justified rack ears.
  • Firmware Update - This product has new firmware available. Please update your switch during installation.


Features

  • Fully Managed
  • Gigabit
  • Multi-Mounting
  • Metal Housing
  • OvrC Enabled
  • Dual SFP Uplinks
  • Fanless Design
  • Control4 Driver

Fully Managed

Fully managed means full control of the network. This switch provides a full L2 managed solution with functionality to handle the most complex and robust installs.

1Gbps Throughput

With a powerful 1Gbps on all ports simultaneously, this switch can support the backbone of an install or simply act as a desktop add.

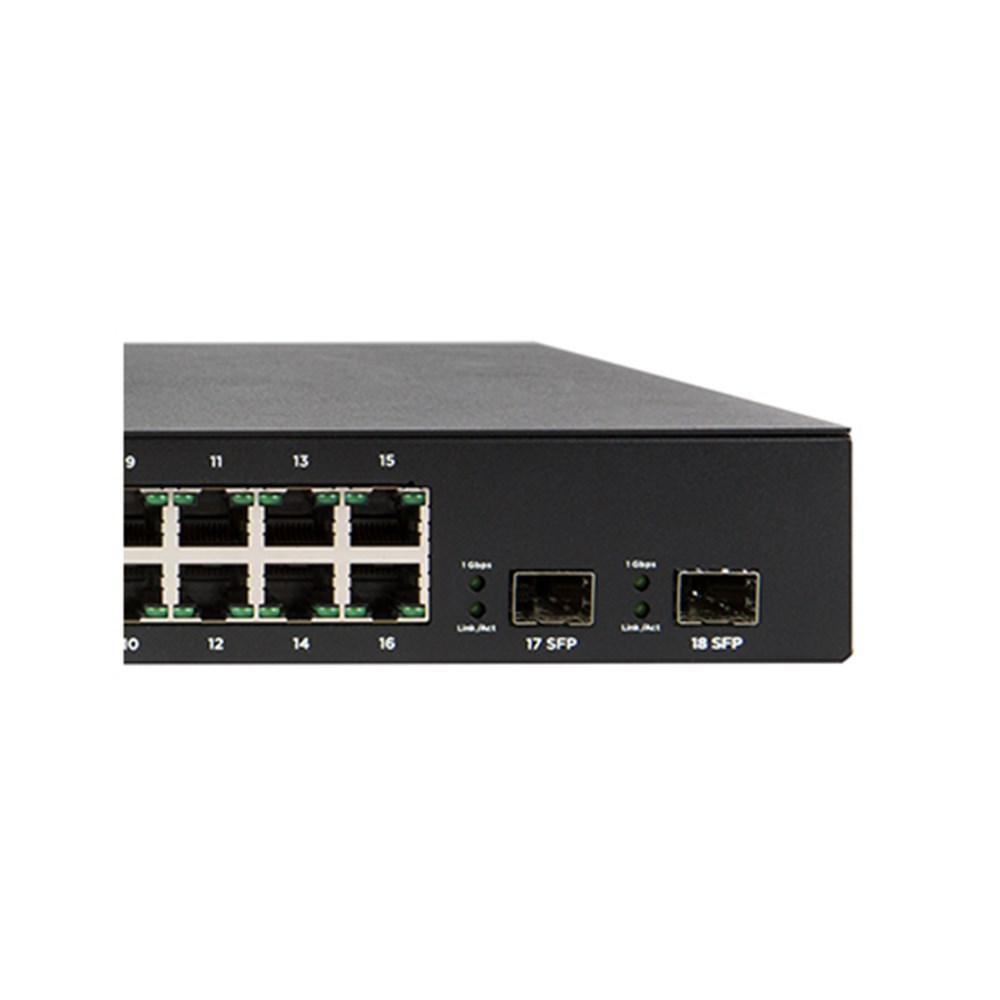

SFP Uplinks

Use this switch’s SFP ports to provide RJ45 uplinks to other devices, and/or fiber uplinks to extend the network over long distances while getting a stronger signal. Featuring a dedicated fabric, they don’t share a backplane with any other ports on the switch, which means you get a full 1 Gbps and don’t have to sacrifice a dedicated PoE port to use them (no combo ports here!).

Control4 Driver for More Customization

Experience greater control and customization with the ability to reboot or power on/off the PoE ports or schedule power cycling for PoE-connected devices. With Control4 “Custom Experience” buttons, your clients control the ability to turn off Wi-Fi and power down IP cameras from the Control4 touch screen or mobile app. To access the driver, search for “Araknis” or “MS” in Composer.

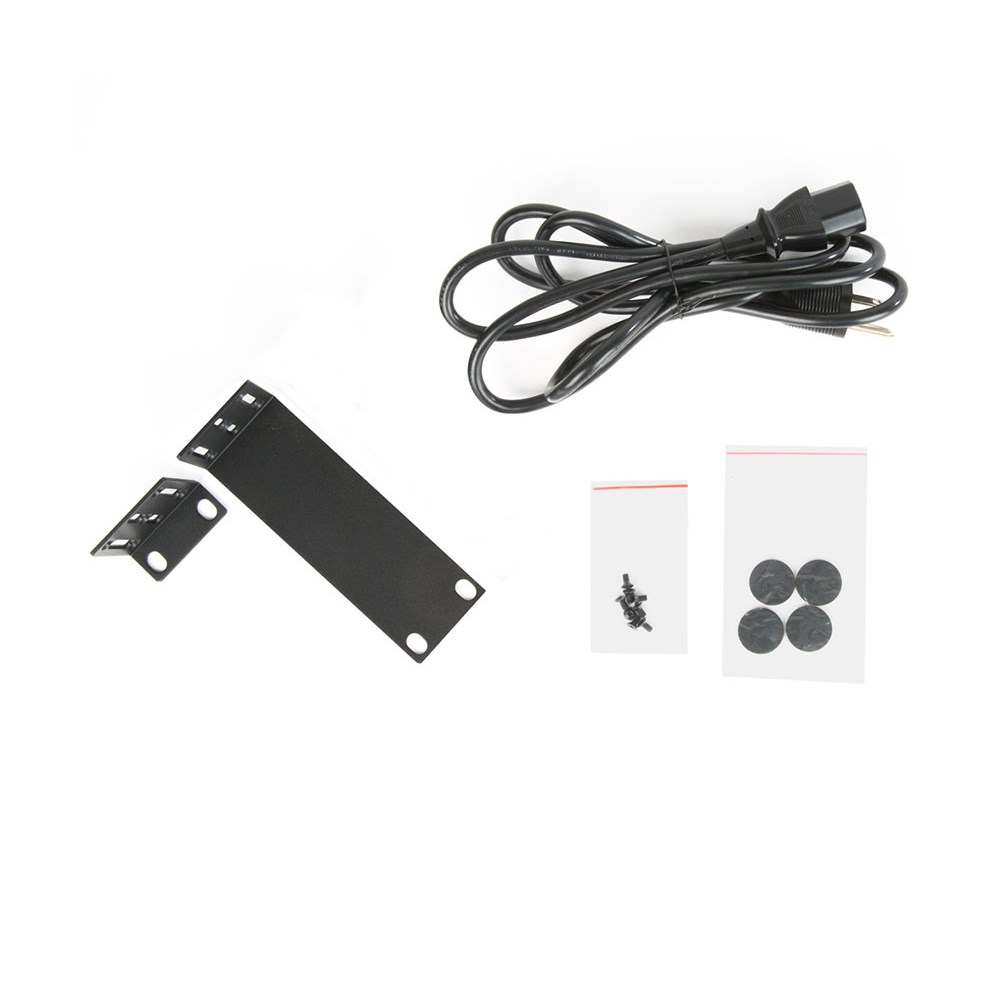

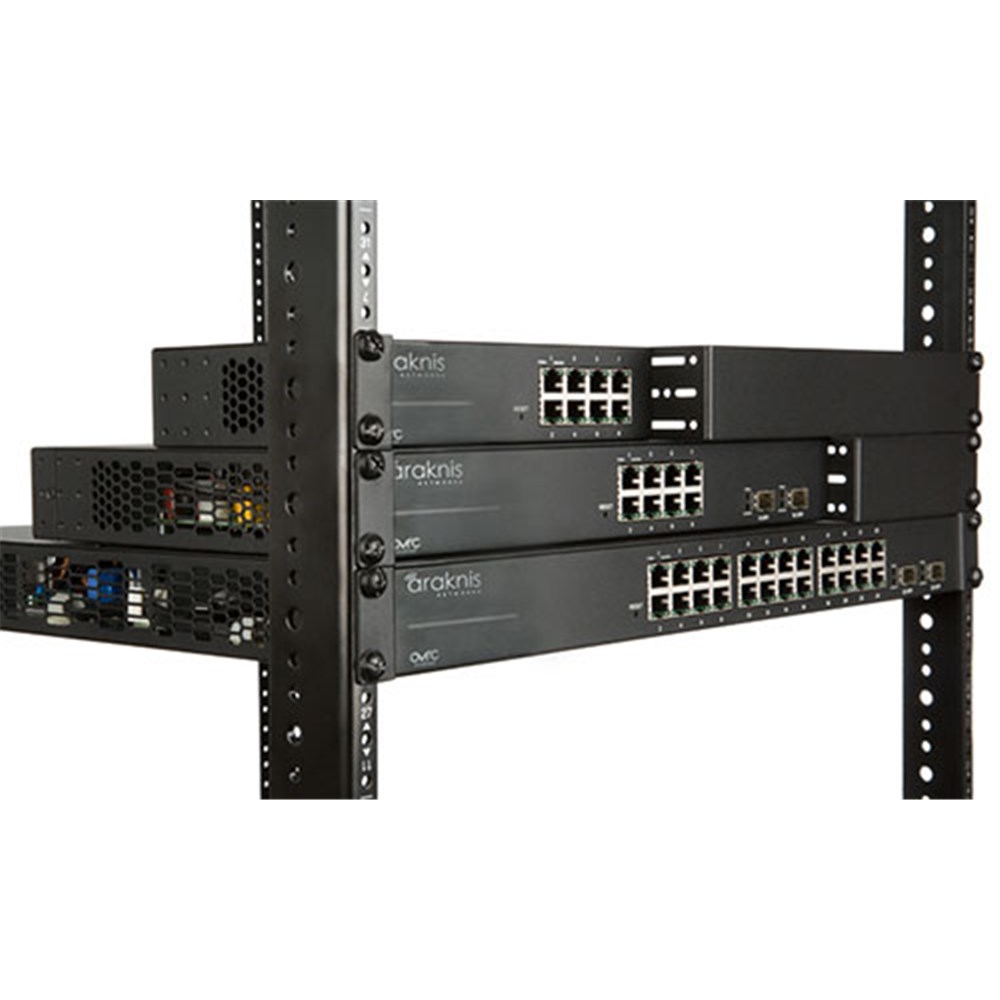

Multi-Mounting

Mounting has never been easier. Due to its 1U design and available accessories, it can easily be mounted in a rack, wall, or anywhere in between. Included rack ears make for a sleek, left-justified design, while optional center-mount rack ears offer a more traditional look.

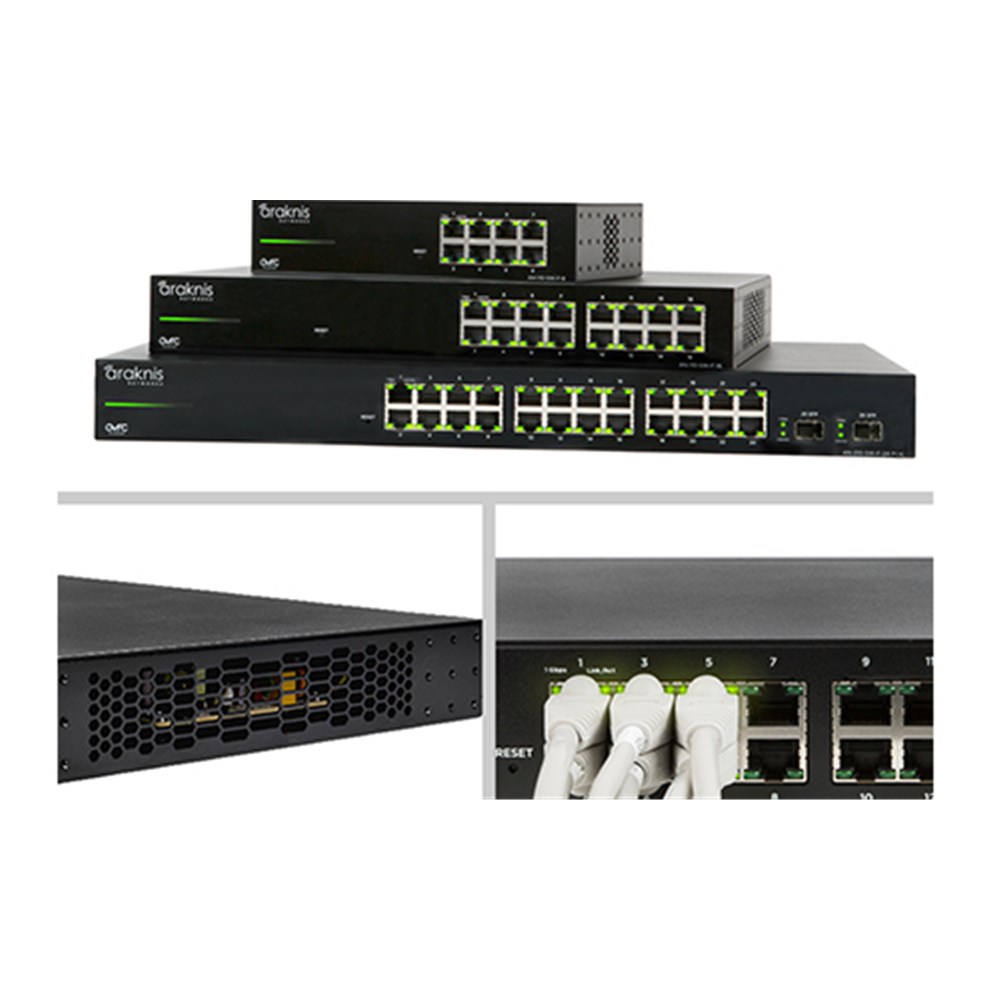

Rift LED & Mechanical Design

Both stylish and informative, these green LED lights indicate power status, port speed (10/100 Mbps - 1 Gbps), and link status. Plus, a redesigned faceplate is constructed with industrial materials and a glossy finish, making for a clean design you’ll love to show off.

Improved GUI

A clear and concise GUI with simple VLAN and Link Aggregation setup makes install work a breeze. And because the GUI is consistent with our routers and WAPs, you can avoid the learning curve altogether.

Temperature Controlled

Now it’s easier than ever to handle the heat. A smarter design features a honeycomb venting solution and temperature sensor that drives the speed of the fans, allowing for efficient and discreet temperature control. For a completely silent solution, opt for the 8-port switch, which incorporates a fanless design.


Specifications

Rack Spacing
1U
RJ-45 1000BASE-T Ports
16
SFP Uplink 1000BASE-X Ports
2
Flash Memory
16MB
SDRAM Memory
128MB
Packet Buffer
512KB
MAC Table Size
8K
Switching Capacity
36Gbps
Forwarding Rate
26.8Mpps
Flow Control
802.3x, Back Pressure
Spanning Tree
802.1D (STP)
802.1w (RSTP)
802.1s (MSTP)
VLAN Features
802.1Q
VLAN Group
Port-based VLANs
Private VLANs
Voice VLAN
Link Aggregation Features
Static, 802.3ad LACP
Max. Ports Per Group: 8
Max Group: 8
Multicast Features
IGMP Snooping v1/v2/v3
MLD Snooping v1/v2
IGMP Querier
IGMP Immediate Leave
Jumbo Frame Support
9K
Storm Control
Broadcast/UnKnown Multi-cast/Unknown Unicast
L2 Features
HOL Blocking
Forwarding Mode: Store-and-forward
Energy Efficient Ethernet: IEEE 802.3az
LLDP (IEEE802.1ab)
QoS Features
Priority Queues: 8 queues/port
Rate Limiting Ingress: 1 Kbps/1 pps
Rate Limiting Egress: 1 Kbps/1 pps
DiffServ(RFC2474)
Scheduling: WRR
CoS: 802.1p, IP ToS Precedence, IP DSCP
Security Features
Port Security (MAC-based)
802.1x PNAC (Port-based)
ACL: L2, L3, L4
IP Source Guard
RADIUS
HTTPS and SSL
SSH v2.0
MAC Filter
Management Features
CLI, WEB, Telnet
Dual FW Images
FW Upgrade: TFTP, HTTP
Management Access Filtering: SNMP/Web/Telnet
RMON: 1, 2, 3, 9 groups
Port Mirroring: One to One, Many to One
Remote Ping
Cable Diagnostics
UPnP
DHCP
Client
Event Log
local flash, remote server
SNMP
v1, 2c, v3
Dimensions (W x H x D)
17.32" x 1.73" x 10.23"
Line Voltage
100-240V AC, 50/60 Hz
Power Consumption
Max: 12.48W
BTU/h (max): 3.66
Operating Temperature
32-122°F
Operating Humidity
10-90%
Weight
7.56 lb
Fan Noise
n/a
